Product Category

USB Type-C

A USB Type-C cable assembly is a USB-C cable built to a customer’s specification — connector orientation, locking method, length, data generation (USB 2.0 to USB4) and power rating (up to 240W). King Lai Electronics designs and manufactures custom USB-C assemblies in Taiwan for industrial, medical, automotive and consumer OEMs, from engineering drawing to SOP mass production.


Why off-the-shelf USB-C cables fail in OEM products?

Procurement teams typically come to us after one of four problems: a friction-fit plug that works loose on a vibrating machine; a straight plug that will not fit inside a shallow enclosure; a “100W” cable that silently charges at 3A because it has no E-Marker; or a consumer cable that cannot pass the customer’s RoHS documentation review. Each is solved at the specification stage — the sections below show how.


USB-C Selection Factors

Factor

Options

Choose when…

Data generation

USB 2.0 (480Mbps) · USB 3.0/3.1 Gen 1 (5Gbps) · USB 3.1 Gen 2 (10Gbps) · USB 3.2 Gen 2×2 (20Gbps) · USB4 (40Gbps) · USB4 v2.0 (80Gbps) · Thunderbolt 5

Match the slowest device in the link; pay for bandwidth only where the host supports it

Power delivery

3A (60W) · 5A E-Marker (100W, PD 3.0) · EPR 240W (48V/5A, PD 3.1)

Any current above 3A requires an E-Marker chip; laptops and monitors usually need 100W+

E-Marker

None · 5A E-Marker · USB4 E-Marker

Mandatory for 5A, for USB4/Thunderbolt and for active cables

Locking

None · screw-lock plug (single/dual) · screw-lock female receptacle · panel-mount flange

Industrial PCs, medical carts, robotics, kiosks, vehicles

Plug angle

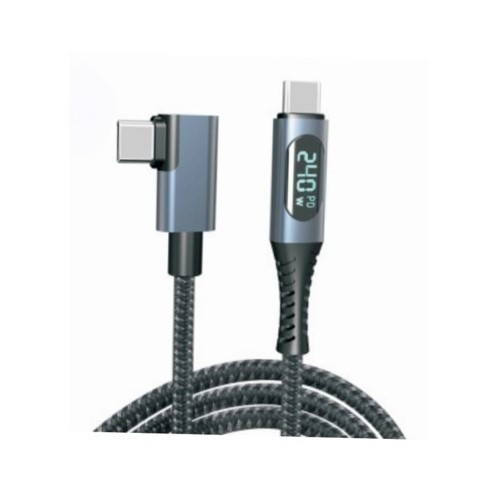

Straight · 90° right-angle (up/down/left/right exit) · dual right-angle

Shallow enclosures, handheld devices, cradles

Shielding

Foil · braid · foil + braid (EMI/RFI)

Required near motors, drives, switching supplies; mandatory for 10Gbps+

Jacket

PVC · TPE · nylon braid · flame-retardant (UL-rated)

Flex life, abrasion, flame rating per end-product requirement

Length

0.2 m adapters to 2 m; custom

Longer runs reduce usable data rate at USB4 speeds

Video

DP Alt Mode (HDMI/DP adapters, 4K@60Hz–16K@60Hz)

Docks, monitors, signage


Sub-categories

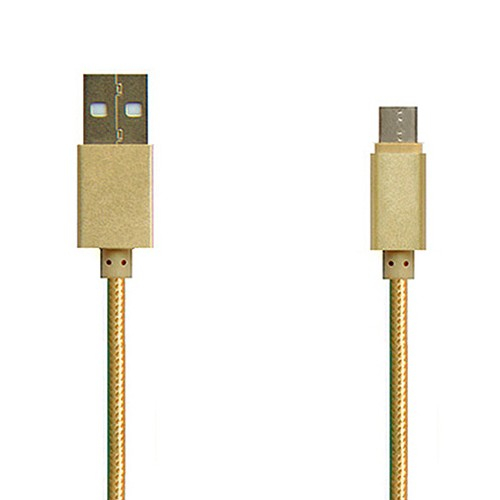

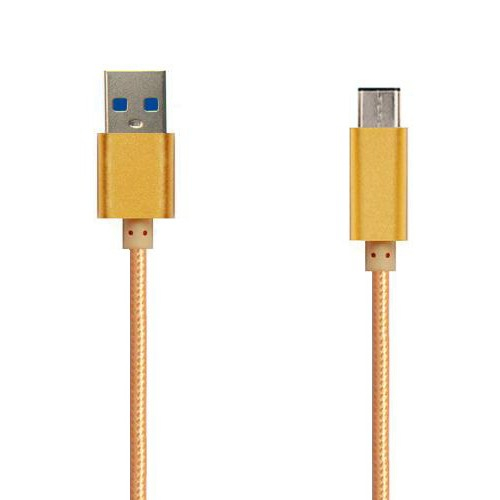

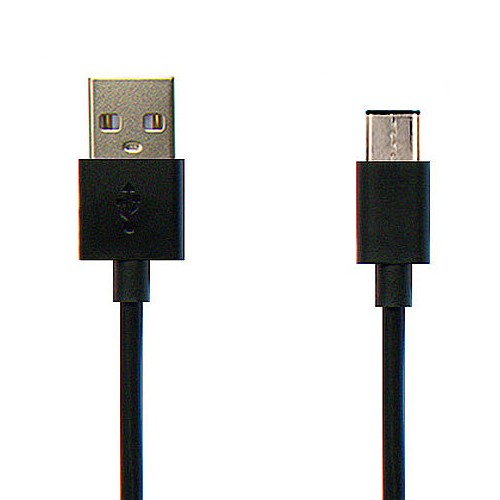

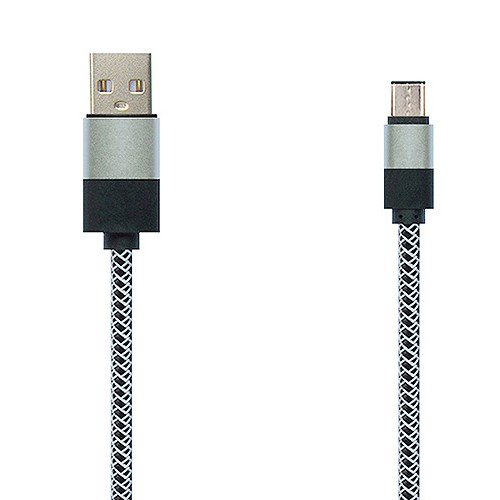

• USB 2.0 Cables — power and low-speed data, cost-optimized

• USB 3.0 Cables — 5Gbps SuperSpeed

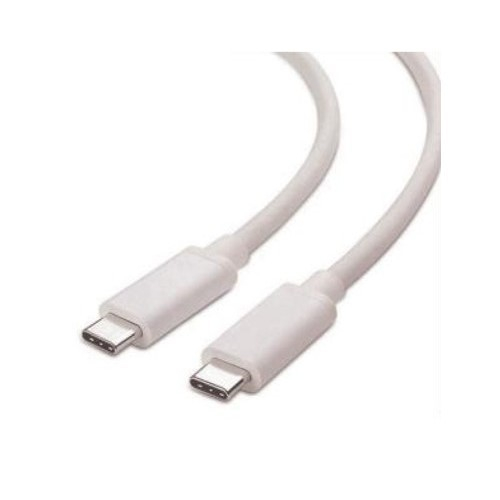

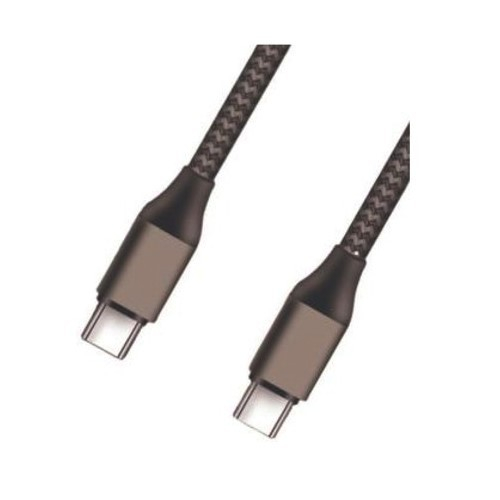

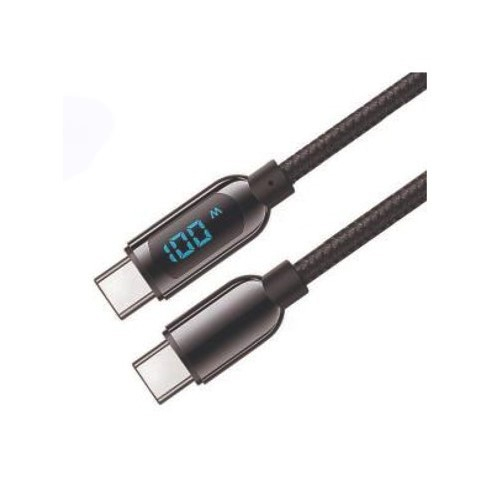

• USB 3.1 Cables — 10Gbps Gen 2, screw-lock, right-angle and panel-mount variants

• USB4 Cables — 40Gbps and 80Gbps, 240W PD

• Thunderbolt 5 Cables — 80/120Gbps


Feature → Advantage → Benefit

Feature

Advantage

Benefit to the buyer

In-house engineering drawings and sampling

Mechanical fit, pin-out and shielding are verified before tooling

No surprises at first-article inspection

Standardized production parameters + SOP

Every lot built the same way

Repeatable quality across repeat orders

Full option set: lock, angle, panel-mount, E-Marker, braid

One supplier covers the whole USB-C BOM

Fewer vendors to qualify and audit

30+ years of cable assembly manufacturing in Taiwan

Experienced process and failure-mode knowledge

Shorter design iterations

SGS low-lead/low-cadmium (RoHS) process

Compliance documentation available on request

Smoother customer and import audits


Quality System & Compliance

King Lai Electronics Co., Ltd. manufactures under ISO 9001:2015, applies UL- and IPC-referenced workmanship standards, and runs an SGS low-lead/low-cadmium (RoHS) process. Details: Certifications.


How a custom USB-C project runs

1. Inquiry — you send a drawing, a sample or a requirement list (host port, device, current, environment).

2. Engineering review — we confirm connector type, E-Marker need, shielding and lock method.

3. Quote — based on confirmed specification.

4. Drawing — mechanical and electrical drawing for your approval.

5. Sampling — functional samples for your fit and signal test.

6. SOP mass production — standardized parameters, in-process inspection.

7. Delivery — packed to your packaging specification.


Featured custom USB-C assemblies (new)

• USB4 Gen 4 (v2.0) 80Gbps 240W cable ·USB4 40Gbps 240W PD 3.1 cable

• Right-angle USB-C to screw-lock USB-C female· Dual screw-lock USB-C M-M

• Panel-mount USB-C extension 0.3 m · Dual right-angle USB-C

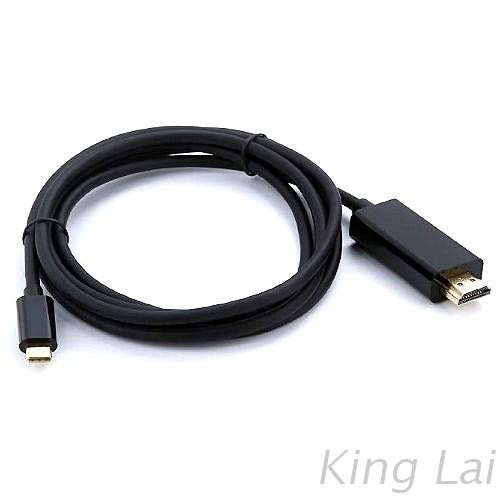

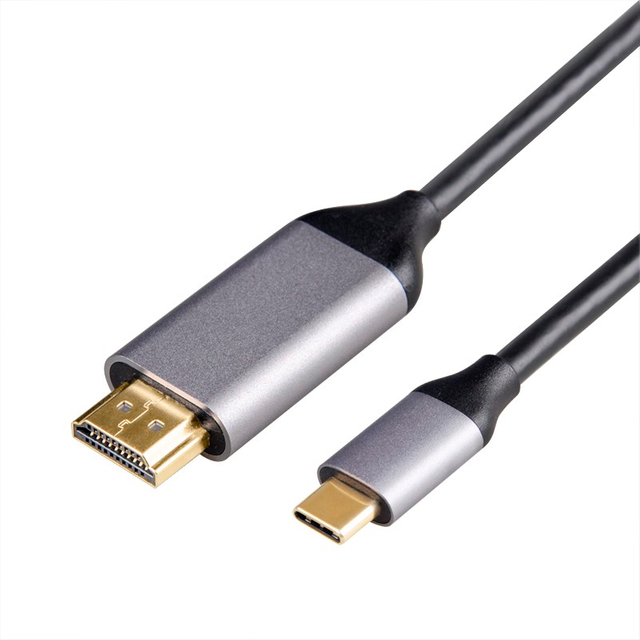

• USB-C to dual HDMI adapter · USB-C to DisplayPort adapter

• USB-C to Gigabit Ethernet adapter · USB-C E-Marker cable 100W

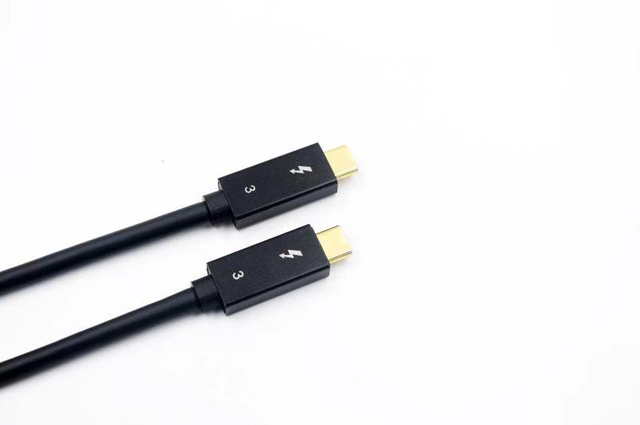

• Existing: Thunderbolt 5 240W cable · USB4 Type-C male to male


FAQ


What is the difference between USB 3.1 Gen 2, USB4 and Thunderbolt USB-C cables?

All use the USB-C connector. USB 3.1 Gen 2 carries 10Gbps; USB4 carries 40Gbps (80Gbps in version 2.0) and tunnels PCIe and DisplayPort; Thunderbolt 5 adds 120Gbps unidirectional boost. Higher generations need an E-Marker, tighter shielding and shorter maximum lengths.

Do I need an E-Marker chip in a USB-C cable?

Yes if the cable must carry more than 3A (60W), support 100W or 240W PD, or operate at USB4/Thunderbolt speeds. The E-Marker reports the cable’s rating so the charger can negotiate safely.

Can King Lai Electronics make a locking USB-C cable for industrial equipment?

Yes. Options include a dual screw-lock plug, a screw-lock female receptacle and panel-mount flanges, in straight or right-angle orientations, with foil-plus-braid shielding for use near motors and drives.

What is the maximum length for a 10Gbps or 40Gbps USB-C cable?

As a rule of thumb, passive 10Gbps cables run comfortably to 1–2 m, while 40Gbps USB4 cables are typically specified at up to 1 m (0.8 m at 40Gbps and above for the strictest profiles). Longer runs need active designs — confirm your length at the quotation stage.

What information should I include in a USB-C cable RFQ?

Host and device port types, required data generation, maximum current/power, length, locking or angle requirements, operating environment (vibration, temperature, EMI), target quantity and any compliance documents needed. Send it through Get a Quote and our engineers will respond with a drawing review.


Specify your USB-C assembly in one message.

→ [Get a Quote] — or email our engineering team via Contact Us.
