Cat 8 is the highest-performance twisted-pair Ethernet category, rated to 2000 MHz for 25GBASE-T and 40GBASE-T over channels up to 30 m, and always shielded. King Lai Electronics manufactures custom Cat 8 patch and equipment cable assemblies with RJ45 terminations in Taiwan for data centers, server rooms and high-bandwidth industrial networks, from drawing to SOP mass production.
Server-to-switch links moving to 25G/40G, storage networks that saturate 10G, and labs that want copper rather than fiber for short runs all hit the same wall: the cable category. Cat 8 solves it for runs up to 30 m — but only if the assembly is fully shielded, correctly terminated and matched to the equipment’s RJ45 ports. Those are specification decisions, not purchasing afterthoughts.
Category | Badwidth | Max data rate | Channel length at max rate | Shielding | Connector |
Cat 6 | 250 MHz | 1Gbps (10Gbps to ~55 m) | 100 m at 1G | UTP or shielded | RJ45 |
Cat 6A | 500 MHz | 10Gbps | 100 m | UTP or shielded | RJ45 |
Cat 7 (ISO Class F) | 600 MHz | 10Gbps | 100 m | Always shielded (S/FTP) | GG45 / TERA (RJ45 variants exist) |
Cat 8 (Class I/II) | 2000 MHz | 25Gbps / 40Gbps | 30 m | Always shielded | RJ45 (Class I) / GG45-TERA (Class II) |
Industry reference values; King Lai assembly specifications (conductor gauge, jacket, length, boot style) are confirmed per project.
• Link speed and distance — 25G/40G up to 30 m channel (24 m permanent link + patch cords); beyond 30 m, use fiber.
• Shielding and grounding — S/FTP construction with a shielded RJ45; the equipment and patch panel must provide a ground path.
• Connector class — RJ45 (Class I) keeps backward compatibility with existing switches; Class II connectors require matching ports.
• Jacket and environment — PVC, LSZH or flame-rated jackets; flex or ruggedized boots for equipment cables.
• Length and labelling — custom lengths with printed or heat-shrink labels for structured cabling records.
Feature | Advantage | Benefit |
Custom-length Cat 8 assemblies, RJ45 terminated and tested | Exact fit for rack and cabinet layouts | No slack loops, cleaner airflow, fewer re-terminations |
Fully shielded S/FTP construction with shielded plugs | Alien-crosstalk immunity at 2000 MHz | Stable 25G/40G links beside power and other data cables |
Engineering drawing → sample → SOP production | Specification fixed before volume | Consistent performance across repeat orders |
Same supplier for Cat 5e/6/6A/7/8 and fiber assemblies | One qualified vendor across the network BOM | Simpler procurement and audits |
30+ years of cable assembly manufacturing in Taiwan | Mature process control | Predictable quality and lead-time planning |
King Lai Electronics Co., Ltd. manufactures under ISO 9001:2015, applies UL- and IPC-referenced workmanship standards and runs an SGS low-lead/low-cadmium (RoHS) process. See Certifications.
Inquiry (length list, port type, environment) → engineering review (shielding, grounding, boot) → quote → drawing approval → samples for your link test → SOP mass production with in-process inspection → labelled, packed delivery.

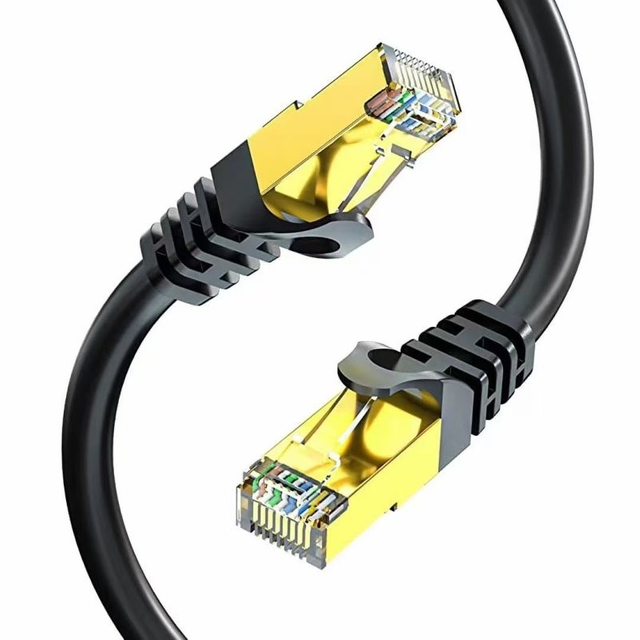

• Cat 8 Ethernet Cable — High-Speed RJ45 (Category 8)
All Ethernet Cables · Cat 6 · Cat 7 · Fiber Optic Cables · Networking & Data Centers
Cat 8 is a shielded twisted-pair Ethernet cable category rated to 2000 MHz that supports 25GBASE-T and 40GBASE-T over channels up to 30 m. It is designed for short, high-bandwidth copper links in data centers and server rooms, and uses RJ45 connectors in its Class I form.
Cat 6 runs 1Gbps to 100 m (10Gbps to about 55 m) at 250 MHz; Cat 7 runs 10Gbps to 100 m at 600 MHz with non-RJ45 connectors; Cat 8 runs 25/40Gbps at 2000 MHz but only to 30 m and is always shielded. Choose Cat 8 for short 25G/40G links, Cat 6A for 10G at distance.
The Cat 8 channel is limited to 30 m (about 24 m permanent link plus patch cords) at 25G/40G. For longer high-speed runs, King Lai Electronics recommends fiber optic cable assemblies.
Yes. Cat 8 Class I assemblies use shielded RJ45 plugs that are backward compatible with Cat 6A/Cat 6/Cat 5e ports; the link simply negotiates to the port’s maximum speed. A proper shield ground path is needed to achieve full Cat 8 performance.
Yes. King Lai Electronics produces Cat 8 assemblies to specified lengths with RJ45 terminations, boot style, jacket type and labelling to your drawing, with samples supplied before SOP mass production.
