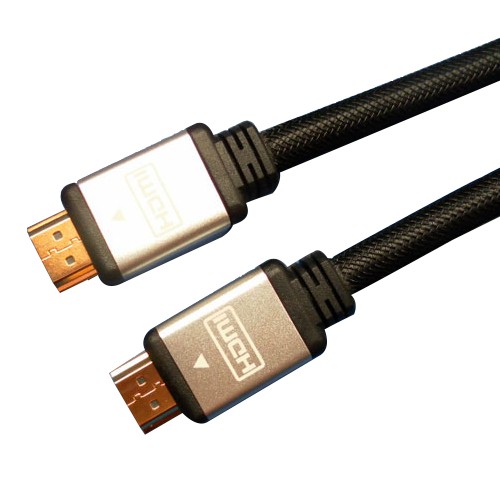

2.0 HDMI AM/AM aluminum shell transmission cable 2.0 Type A Male to Type A Male HDMI
Product Description :
the most mainstreamStandard HDMI(standardHDMI): This is the most basicHDMIinterface, support720p和1080iHigh-definition video from an earlier versionHDMI。 HDMI Version ： 2.0 HDMI 2.0 is an important version of the HDMI (High-Definition Multimedia Interface) standard that introduces a series of new features and improvements to meet the growing demand for high-definition (HD) and ultra-high-definition (UHD) images.Here are some of the key features of HDMI 2.0:
Higher bandwidth: HDMI 2.0 has a maximum transfer rate of 18 Gbps, up from 10.2 Gbps in the previous version.This means it can support higher resolutions, deeper colors, and faster refresh rates.
4K resolution support: HDMI 2.0 fully supports 4K (Ultra High Definition) resolution, including a 60 Hz refresh rate of 3840x2160 pixels, making it an ideal choice for processing higher-quality images.
Support for high dynamic range (HDR): HDMI 2.0 introduces support for HDR, which can provide a wider range of brightness and color, providing more realistic and vivid images.
Supports 21:9 wide screen ratio: HDMI 2.0 allows for a 21:9 wide screen ratio, providing a wider image ratio suitable for certain movies and games.
High-speed continuous transmission: HDMI 2.0 supports high-speed continuous transmission, which is very important for supporting high refresh rate videos and games.
Enhanced audio functions: HDMI 2.0 supports High Bit Rate Audio, providing higher audio quality. It also supports Multi-Stream Audio and Adaptive Synchronization (Audio Return Channel - ARC).
Support 3D video: HDMI 2.0 continues to support 3D video, providing higher resolution and refresh rate.
Overall, HDMI 2.0 provides consumers with a richer and more realistic audio-visual experience, especially when it comes to processing 4K content, HDR and high refresh rate images.This makes it the standard for many modern home entertainment and video streaming applications.
Common HDMI interface types：
There are three main standard models of HDMI interfaces, namely Type A, Type C, and Type D.In addition, there are some HDMI interfaces for special applications.Here's a summary:
1.Type A HDMI: Also known as standard HDMI, is the most common HDMI interface, usually used to connect TVs, monitors, projectors, etc.It is a full size interface.
2.Type C HDMI: Also known as Mini HDMI,It is a smaller HDMI interface, usually used for some small devices, such as digital cameras, camcorders, etc.
3.Type D HDMI: Also known as Micro HDMI, is a smaller HDMI interface, usually used in extremely small devices, such as mobile phones, tablets, etc.
HDMI interface for special applications:
1.Automotive HDMI: HDMI interface for automotive applications with stronger connection and resistance to vehicle vibration.
In addition, HDMI 2.1 is a new HDMI standard rather than a separate interface type, which provides higher data transfer rates and supports higher resolutions and high refresh rates.This standard still uses the physical connector of Type A HDMI.
In general, there are three main standard models of HDMI interfaces, and special applications may have other variants according to needs.
After confirming the HDMI connector type, the next step is to choose the cable!
The outside of the HDMI cable is marked 'HDMI 1.3 / 1.4 / 2.0 / 2.1'These descriptions are commonly seen. The larger the number, the higher the quality and the more detailed image effects can be transmitted.These specifications are product certifications issued by professional certification agencies.
Versions and specifications: HDMI standards are constantly updated, and versions include HDMI 1.4, HDMI 2.0, HDMI 2.1, etc.Newer versions typically support higher video resolutions, higher refresh rates, and other advanced features.
Resolution and bandwidth: If your device supports 4K or 8K video, make sure your HDMI cable has enough bandwidth to support these high resolutions.Choose cables labeled High Speed HDMI or HDMI 2.0/2.1, these versions usually support higher data transfer rates.
Length: The length of the HDMI cable may affect the signal quality.
HDMI 2.0 supports 4K/60Hz, increases bandwidth to 18 Gb/s, and adds HDR technology
HDMI 2.0 enhances support for 4K.The most direct improvements include two points:
First, the bandwidth has been expanded to 18Gbps, which can support 3840×2160 resolution and 50FPS and 60FPS frames.
Second, in terms of audio, it supports up to 32 channels and a maximum sampling rate of 1536kHz.
HDMI 2.0 is an important update that greatly improves image transmission performance!Introduced support for 4K/60Hz and increased total bandwidth to 18 Gb/s.It has also been introduced to support 1080p resolution at 240 Hz and 1440p resolution at 144 Hz. For game running, it can support higher refresh rates at high image quality.
HDMI 2.0 is equipped with static HDR (high dynamic range) technology, which can achieve higher light and dark details and color contrast, making the picture look closer to the vivid and realistic colors in real life.
HDMI usually includes version, type, length, etc.Here are some common HDMI cable specifications:
1.HDMI Version: The HDMI standard is constantly updated, with each version introducing new features and improvements.Some of the major HDMI versions include 1.0, 1.1, 1.2, 1.3, 1.4, 2.0, and 2.1.New versions typically support higher resolutions, higher refresh rates, and other advanced video and audio features.
2.HDMI Type: HDMI cables are usually classified according to the functions and performance levels they support, such as standard HDMI cables, high-speed HDMI cables, high-speed HDMI cables with Ethernet, Premium High-Speed HDMI cables, Ultra High-Speed HDMI cables, etc.Different types of wires are suitable for different application scenarios and requirements.
3.HDMI Length: The length of the HDMI cable is an important consideration.Longer cables may cause signal loss, so consider the required connection distance when selecting.Generally, the recommended maximum length for standard HDMI cables is about 15 feet (4.5 meters), while the recommended maximum length for high-speed HDMI cables is slightly shorter.
4.HDMI Interface: HDMI cables have different interface types such as standard, Mini, Micro, etc. Make sure to choose the interface that is compatible with your device.
5. Supported resolutions and refresh rates: Different types of HDMI cables support different maximum resolutions and refresh rates.Especially when connecting to a high-resolution monitor, make sure the cable you choose meets your needs.
6. Other functions: Some HDMI cables have additional functions, such as supporting Ethernet channels, Audio Return Channel (ARC), etc.These features are usually available in higher-end versions of HDMI cables.
When purchasing an HDMI cable, make sure you understand the specifications required to ensure the cable will meet the needs of your device and application。
Excellent quality, welcome to call us!
Diverse designs: King Lai Electornics Co.,Ltd. provides diversified designs of 2.0 HDMI AM/AM aluminum shell transmission lines
2.0 HDMI AM/AM aluminum shell transmission line accepts original factory commissioned design and manufacturing ODM
2.0 HDMI AM/AM aluminum shell transmission cable is accepted for OEM manufacturing.
