XT30, XT60 and XT90 connectors provide compact and dependable power interfaces for LiPo batteries, FPV drones, RC models, UAVs, robots, motor-driven equipment and other DC-powered systems.
Although the three models share a similar application principle, they are designed for different combinations of power demand, connector size, cable gauge, equipment weight and installation space. Choosing the correct model requires more than matching a connector name to a current value. The complete electrical path—including the battery, wire gauge, cable length, connector contacts, solder joints, controller and operating environment—must be evaluated as one system.
King Lai provides XT30, XT60 and XT90 connectors as part of customized cable assemblies and wire harnesses. Connector gender, wire specification, cable length, branch design, opposite-end connector and protective processing can be configured according to the customer’s equipment drawings and electrical requirements.

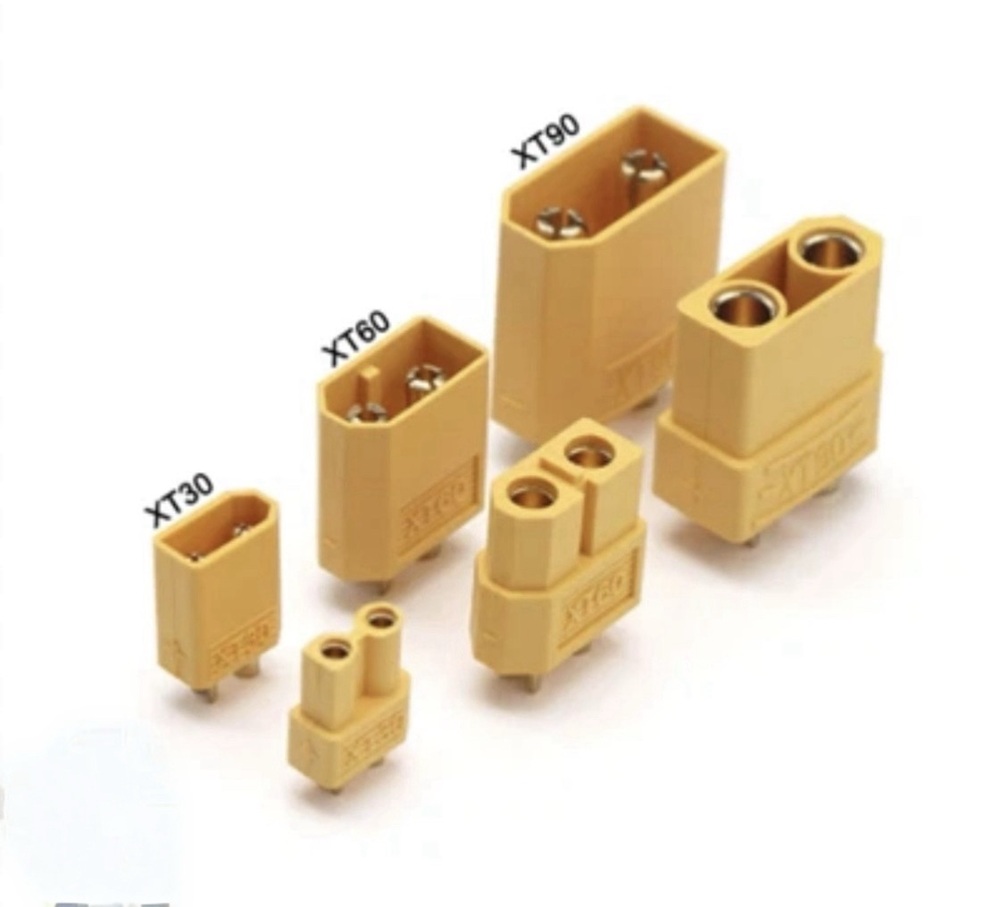

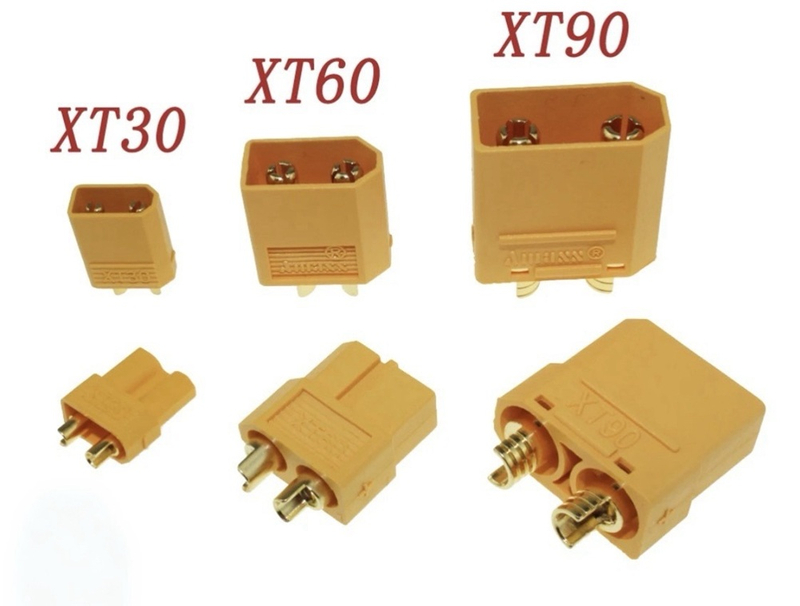

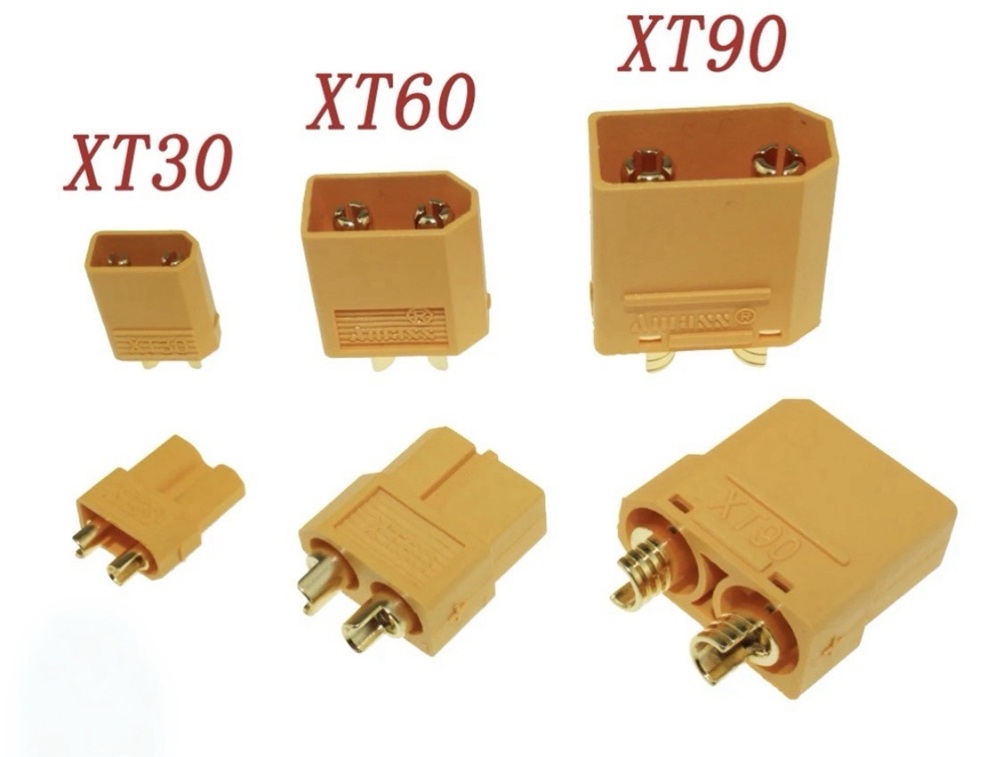

Model options: XT30, XT60 and XT90
Service type: OEM and ODM cable assembly manufacturing
Typical applications: LiPo batteries, FPV, RC, drones, robots and industrial DC equipment
Customization: Wire gauge, cable length, connector gender, branches, terminals and protection
The primary differences between XT30, XT60 and XT90 connectors are their physical size, weight, contact structure, compatible cable direction and intended power range.
XT30 is the smallest and lightest option. It is generally selected when reducing equipment size and weight is a priority.
XT60 offers a balanced design for applications that require more power capability than a compact connector while still controlling overall size and weight.
XT90 has a larger connector and contact structure. It is better suited to equipment using larger batteries, higher-power motors and heavier-gauge power cables.

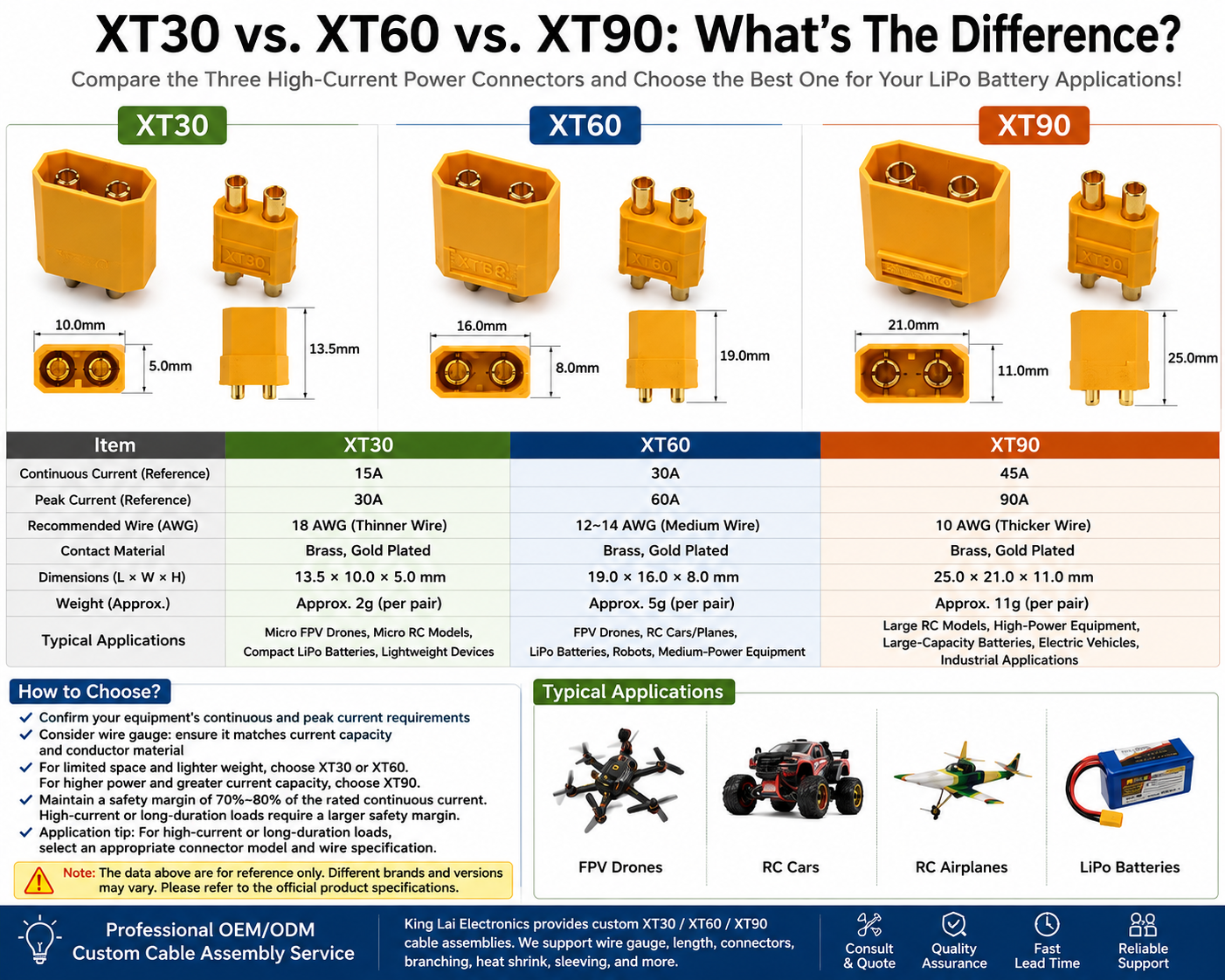

Comparison Item | XT30 | XT60 | XT90 |
|---|---|---|---|
Product positioning | Compact and lightweight | Balanced and versatile | Larger, higher-power design |
Connector size | Smallest | Medium | Largest |
System weight | Lowest | Moderate | Higher |
Typical power demand | Low to medium | Medium to higher | Higher-load systems |
Typical cable direction | Smaller wire gauges | Medium wire gauges | Larger wire gauges |
Space requirement | Minimal | Moderate | Greater |
Common battery type | Smaller LiPo batteries | Medium-power LiPo batteries | Larger-capacity battery packs |
Typical equipment | Micro FPV, compact UAVs | FPV, RC, drones, robots | Large RC models, robots, AGVs |
Main purchasing benefit | Saves space and weight | Balances power and size | Provides more design margin |
Main engineering focus | Weight and temperature rise | System compatibility | Load, cable size and installation space |
Important engineering note: The numbers in XT30, XT60 and XT90 should not automatically be interpreted as universal continuous-current ratings. Actual ratings can vary according to connector manufacturer, product version, contact material, wire gauge, assembly quality, ambient temperature and test conditions. Final selection should be confirmed against the approved component specification and application testing.
The XT30 connector is designed for applications where limited installation space and low system weight are important.
Its compact form makes it suitable for micro FPV drones, small UAVs, lightweight RC models, portable electronic equipment and smaller LiPo battery systems. By reducing connector size and associated cable weight, XT30 can help designers maintain a lighter and more compact power architecture.
Feature | Advantage | Buyer Benefit |
|---|---|---|
Compact connector size | Requires less installation space | Easier integration into small enclosures |
Lightweight construction | Adds less mass to the power system | Supports weight-sensitive drone and RC designs |
Suitable for smaller wire configurations | Simplifies routing in compact equipment | Helps improve internal wiring flexibility |
Available in custom cable assemblies | Can be supplied with specified wires and terminals | Reduces additional assembly work at the customer’s facility |
Micro FPV drones
Lightweight racing drones
Small UAV platforms
Compact RC vehicles
Portable battery-powered equipment
Smaller LiPo battery packs
Prototype robots and electronic devices
Space-limited DC power modules
XT30 should be selected when the system’s actual current demand is compatible with its compact design. In applications involving frequent peak loads, long cable runs or restricted ventilation, temperature rise and voltage drop should be validated during prototype testing.
XT60 is a versatile option for equipment that requires a practical balance between power capability, connector size, system weight and installation convenience.
It is widely applicable to FPV drones, RC vehicles, RC aircraft, medium-size UAVs, robots, motor controllers and LiPo battery systems. Its moderate dimensions make it easier to standardize across multiple products than using an undersized connector for high loads or an oversized connector for compact equipment.
Feature | Advantage | Buyer Benefit |
|---|---|---|
Balanced connector dimensions | Supports power transmission without excessive size | Suitable for a broad range of product platforms |
Compatible with multiple cable configurations | Can be adapted to different equipment requirements | Simplifies product-family standardization |
Commonly used in battery and motor systems | Easier to integrate into established designs | Reduces development and sourcing complexity |
Custom male and female assemblies available | Matches battery-side and equipment-side interfaces | Supports direct installation during final assembly |
FPV drones
RC cars and trucks
RC aircraft
Medium-size UAVs
LiPo battery packs
Electric model systems
Mobile robots
Motor controllers and ESC connections
Portable power equipment
OEM battery-powered electronics
XT60 connector heating is not always caused by the connector model itself. Undersized wire, excessive cable length, poor soldering, worn contacts, loose mating or multiple adapters can increase resistance in the complete power path. The connector and cable assembly should therefore be designed and tested together.
XT90 is intended for equipment that uses larger batteries, higher-power motors, heavier-gauge cables or higher continuous and peak loads.
Its larger physical structure provides additional design margin for demanding power systems, but it also requires more installation space and adds more weight than XT30 or XT60. It should therefore be selected based on actual electrical and mechanical requirements rather than simply choosing the largest available connector.
Feature | Advantage | Buyer Benefit |
|---|---|---|
Larger connector structure | Better suited to higher-load power paths | Supports demanding battery and motor applications |
Suitable for heavier-gauge wires | Matches larger power cables more effectively | Helps avoid undersized cable configurations |
Greater mechanical size | Provides more handling area during installation | Easier integration in larger equipment |
Optional custom harness configurations | Supports branches, terminals and equipment connectors | Reduces the need for separate adapter components |
Large RC cars and trucks
Large RC aircraft
Higher-power UAVs
High-capacity LiPo battery packs
Mobile robots
AGVs and AMRs
Electric drive systems
Industrial battery-powered equipment
High-current DC power modules
Motor and controller power connections
For systems with large input capacitors, customers may also evaluate an anti-spark connector configuration such as XT90-S. The suitability of an anti-spark version should be confirmed according to the equipment’s inrush-current behavior and connector specification.
King Lai’s service extends beyond supplying individual XT connectors. We integrate the selected connector, wire, terminals, branch structure and protective components into a cable assembly designed for the customer’s equipment.

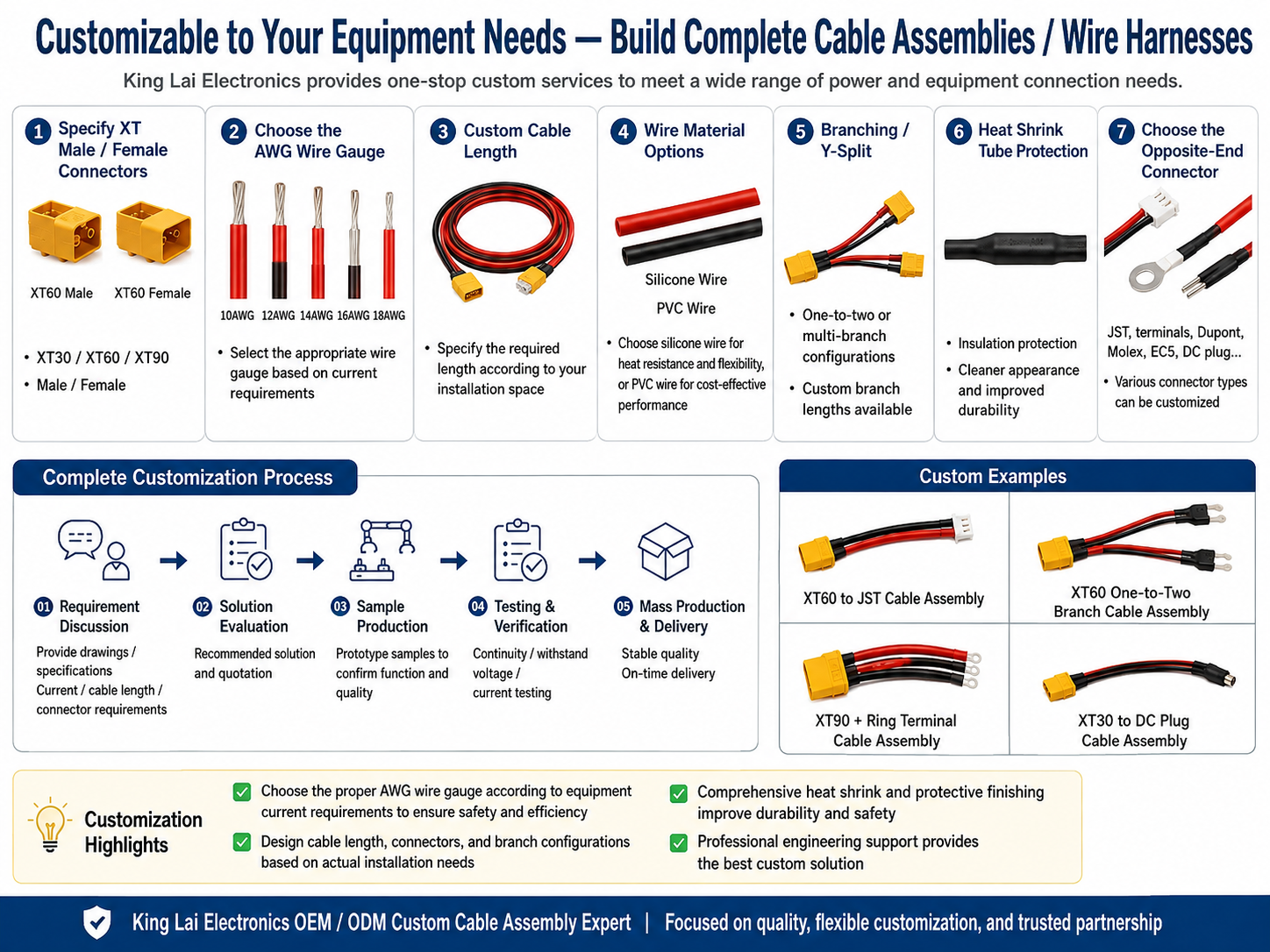

Custom Feature | Engineering Advantage | Customer Benefit |
|---|---|---|
XT30, XT60 and XT90 options | Connector size can be matched to the application | Avoids unnecessary weight, cost or insufficient capacity |
Custom wire gauge | Cable can be selected according to load and length | Helps control voltage drop and temperature rise |
Custom cable length | Eliminates excessive or insufficient wire | Improves installation efficiency and cable management |
Male or female connector options | Supports battery-side and equipment-side designs | Reduces the need for extra adapters |
Custom opposite-end connector | Creates a complete device-ready cable | Shortens assembly time at the customer’s factory |
Y-split and multi-branch designs | Distributes power through one engineered harness | Reduces wiring complexity and component count |
Heat-shrink and sleeving options | Protects joints and provides strain support | Improves assembly durability and appearance |
Prototype and volume production | Allows design validation before mass production | Reduces project and launch risk |
Every battery-powered product has different electrical, mechanical and installation requirements. King Lai can manufacture XT connector cable assemblies according to drawings, reference samples or defined specifications.
Customization Item | Available Direction |
|---|---|
Connector model | XT30, XT60 or XT90 |
Connector gender | Male, female or matched pair |
Wire gauge | Selected according to current, length and equipment requirements |
Wire type | Silicone wire, electronic wire or project-specified cable |
Cable length | Customized for enclosure and routing requirements |
Cable color | Standard or project-specified identification |
Branch design | Straight, Y-split, one-to-two or multi-branch |
Opposite-end interface | JST, Molex, ring terminal, blade terminal or other connector |
Protection | Heat-shrink tubing, insulation sleeve and strain relief |
Marking | Labels, identification sleeves or project-specific marking |
Packaging | Bulk, individual or production-line packaging |
Production stage | Prototype, sample approval, pilot run and mass production |
A typical customized assembly may include:
XT60 connector + specified AWG silicone wire + custom cable length + equipment-side terminal
or:
XT90 connector + heavier-gauge power cable + Y-split branch + customer-specified device connector
This approach allows the cable assembly to arrive ready for integration instead of requiring the customer to source connectors, wire and terminals separately.
Connector selection should begin with the complete equipment requirement rather than the connector model alone.
Identify both the normal operating current and short-duration peak current. Motors, ESCs and battery-powered actuators can draw substantially different current during startup, acceleration or temporary overload.
Smaller wires and longer cable runs produce more resistance. Even when the connector is appropriately selected, an undersized or unnecessarily long wire can create voltage drop and heat.
XT30 is easier to install in compact equipment, while XT90 requires more room for the connector, larger wire and cable-bending radius.
Connector and wire weight can affect FPV drones, UAVs and mobile robots. A larger connector is not automatically a better choice when weight directly affects performance or operating time.
Equipment that is connected and disconnected frequently may require additional strain relief, protective sleeving or cable-routing support.
Electrical performance is affected by operating temperature, enclosure design and airflow. Assemblies installed in enclosed or high-temperature equipment should be evaluated under realistic conditions.
The final cable assembly should be checked using the actual connector, wire gauge, cable length, soldering process, load profile and installation environment.
A typical power system includes:
LiPo Battery → Power Cable → XT Connector → Power Cable → ESC or Controller → Motor or Equipment
The performance of the system is limited by its weakest component.
Design Issue | Possible Result |
|---|---|
Wire gauge is too small | Voltage drop and cable heating |
Cable is unnecessarily long | Increased resistance and power loss |
Solder joint is poor | Localized heat and unstable performance |
Contact is worn or contaminated | Increased contact resistance |
Connector is undersized | Excessive temperature rise under load |
Connector is oversized | Unnecessary weight, cost and space |
Strain relief is insufficient | Stress on the wire and solder joint |
Too many adapters are used | Additional contact points and resistance |
Using an XT90 connector with an undersized cable does not make the complete system suitable for an XT90-level application. The connector, cable and termination process must be selected as one engineered assembly.
King Lai XT30, XT60 and XT90 connector assemblies can be developed for a wide range of battery and DC power applications.
Compact and lightweight XT30 assemblies can be used in smaller platforms, while XT60 and XT90 options support progressively larger batteries and propulsion systems.
Custom cable lengths, connector genders and branch configurations help connect batteries, ESCs, motors, chargers and power-distribution components.
XT connector leads can be configured according to battery size, wire gauge, equipment interface and required protection.
XT cable assemblies can supply motors, controllers, actuators and onboard power modules in mobile and stationary robotic systems.
Larger connector and cable configurations can be evaluated for battery-powered material-handling and autonomous mobile equipment.
Customized assemblies can connect battery modules, power controllers, test equipment and other DC-powered devices.
For B2B buyers, the product requirement is usually not simply an XT30, XT60 or XT90 plug. The real requirement is a repeatable cable assembly that can be installed directly into the final product.
King Lai supports projects from requirement review through sample development and volume manufacturing. Customers can provide an existing sample, engineering drawing or equipment specification for evaluation.
Our engineering review may include:
Connector model and gender
Operating voltage
Continuous current
Peak current
Wire gauge and conductor type
Cable length
Branch configuration
Opposite-end connector or terminal
Insulation and protection requirements
Installation environment
Required testing
Annual demand and order quantity
Clear project information helps reduce sampling revisions and supports a smoother transition from prototype to production.
King Lai has more than 30 years of experience in customized wire processing and cable assembly manufacturing. Our capabilities cover connector integration, wire preparation, termination, assembly and project-specific inspection.
Depending on the approved specification, production and inspection controls may include:
Incoming-material verification
Wire cutting and preparation control
Terminal or solder-joint inspection
Polarity and pin-assignment verification
Continuity testing
Visual inspection
Dimensional and cable-length inspection
Pull-force or mechanical testing when required
Electrical testing according to the agreed project specification
Sample approval before volume production
Applicable company certifications, material declarations and project-specific compliance documents can be reviewed during quotation. Certification claims should always be confirmed against the final product configuration and approved materials.
To receive a more accurate quotation for a customized XT connector cable assembly, please provide as many of the following details as possible:
Required connector model: XT30, XT60 or XT90
Male or female connector
Operating voltage
Continuous operating current
Peak current and duration
Required wire gauge
Cable type and color
Cable length
Opposite-end connector or terminal
Branch or adapter configuration
Protection and labeling requirements
Drawing, photograph or reference sample
Prototype quantity
Estimated production quantity
If the final connector or wire gauge has not yet been selected, provide the equipment and electrical requirements for engineering review.
The main differences are connector size, weight, contact structure, typical cable direction and intended power range. XT30 is optimized for compact and lightweight equipment, XT60 balances size and power capability, and XT90 is intended for larger, higher-load systems.
No. A model number should not be treated as a universal continuous-current rating. Actual capability depends on the specific connector, manufacturer, wire gauge, assembly quality, temperature and test conditions.
XT30 is commonly evaluated for smaller and weight-sensitive FPV systems. XT60 may be more suitable for medium-power FPV equipment. The final choice should be based on the battery, ESC, motor, peak current and weight target.
XT90 may be evaluated when the equipment uses a larger battery, higher-power motor, heavier-gauge cable or higher continuous and peak current. Available space and added connector weight should also be considered.
No. The three connector sizes are generally not directly interchangeable. A custom adapter cable can be manufactured, but the capacity of the complete system must still be evaluated according to its weakest component.
Possible causes include excessive current, undersized wire, long cable length, poor soldering, damaged contacts, incomplete mating or excessive use of adapters. The entire power path should be inspected.
Yes. The connector model, gender, wire gauge, cable length, branch design, protection and opposite-end connector can be customized according to the customer’s project requirements.
Sample development and prototype evaluation can be arranged before volume manufacturing. Customers should provide drawings, samples or detailed electrical and mechanical requirements.
An anti-spark configuration such as XT90-S may be evaluated for systems with inrush-current or mating-spark concerns. Availability and suitability should be confirmed during project review.
Provide the XT model, connector gender, voltage, continuous and peak current, wire gauge, cable length, opposite-end interface, quantity and any available drawing or sample.
