USB3.1 Type-C male to female dual ears with single screw Transmission line
Product name: USB3.1 Type-C male to female double ear with single screw to fix extension cord 16 cores
Product length: multiple lengths available
Interface specifications: Female left and right Binaural screw hole The top of the male head has a single screw (supports both forward and reverse insertion)
Product specifications: Capable of 3A fast charging and data audio and video transmission.
USB 3.1Gen2 (SuperSpeedPlus): transfer speed up to 10Gbit/s
Wire specifications: gold-plated pure copper wire core 16+1 core, with braided mesh cover layer, OD4.5mm.
Scope of application: used to extend the USB3.1 Type-c interface (to protect the host interface).
Product compatibility: USB3.1 Type-C interface USB3.1 USB3.0 USB2.0 fully compatible.
1. Using TYPE-C connector, the interface is blind-plugged on both sides, regardless of the front and back.
2. The male connector is 3.1 interface and the female connector is USB3.1 version.
3. Aluminum foil + braided anti-shielding, more stable transmission
Environmentally friendly and compliant with ROHS directive

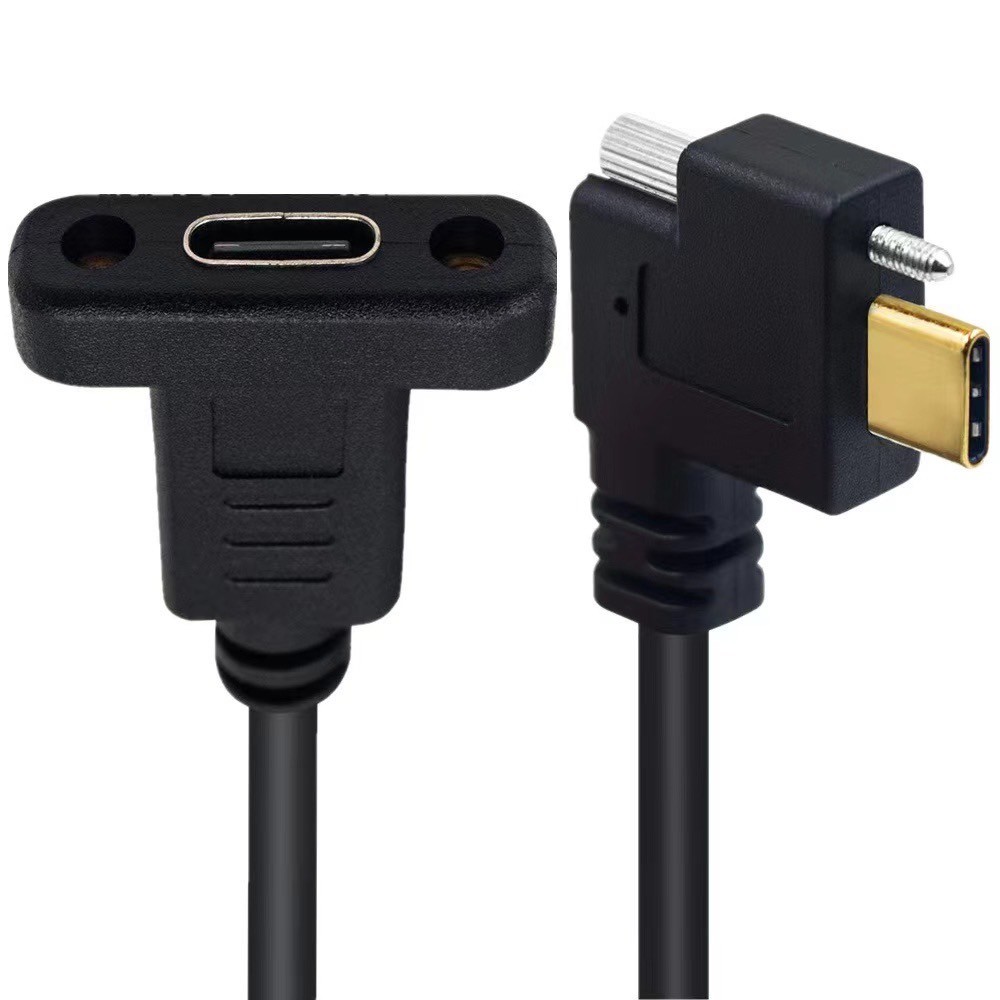

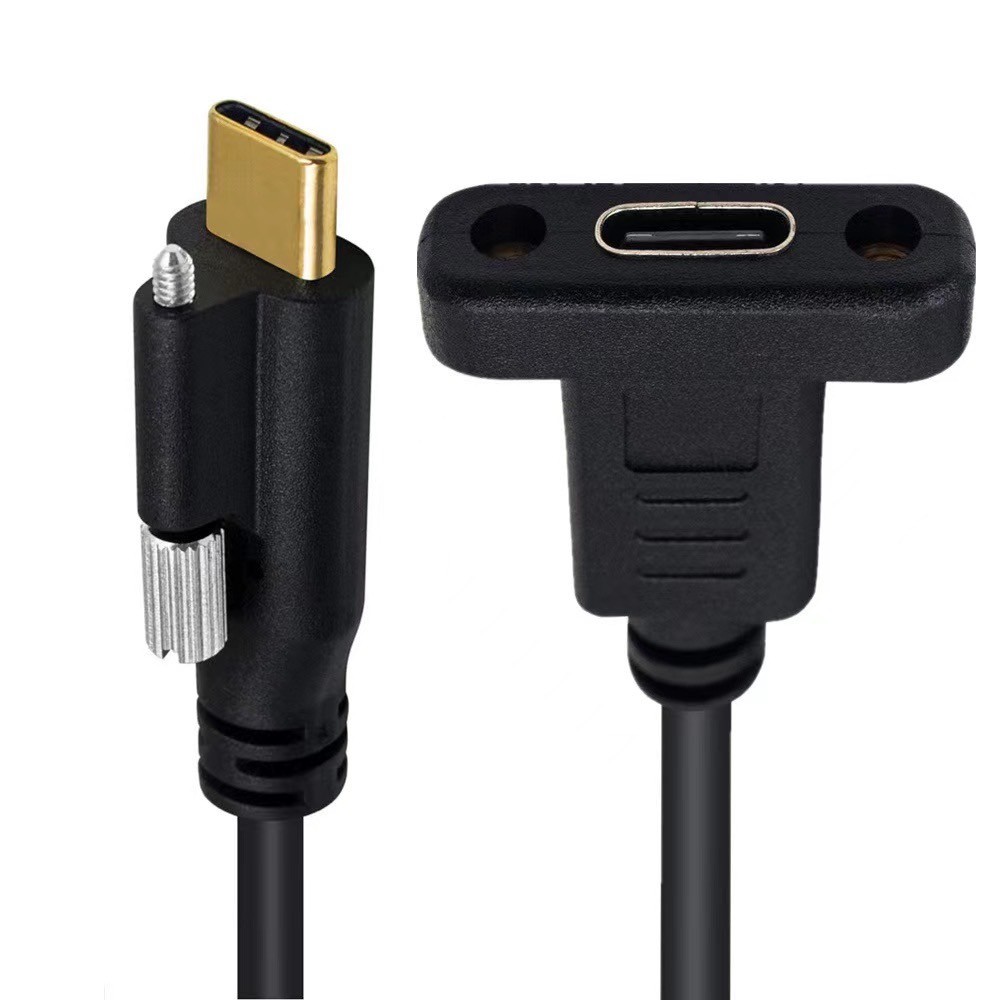

Connector 1: USB 3.1 Gen 2 Type-C Male with a single screw on the top (supports reversible insertion)
- Connector 2: USB 3.1 Gen 2 Type-C Female left and right Binaural screw hole
Provide customization, processing with supplied materials and OEM services
10GB USB Type-C3.1 Gen2 Adapter high-speed transmission fast charging cable
USB 3.1Gen2 (SuperSpeedPlus): transfer speed up to 10Gbit/s
12pin can be plugged into both front and back USB 3.1 to increase the speed from 3.0's 5Gbps to 10Gbps.
Compliant with USB 3.1 GEN2 high-speed transmission
Use 3A, USB Type-C dedicated cable
Support USB PD3.0 / QC3.0 fast charging protocol
Use OFC oxygen-free copper and PVC insulator
Nickel-plated plug with gold-plated terminals, resistant to plugging and unplugging and oxidation resistant
Aluminum alloy anodized shell, beautiful and durable
.Gold-plated terminals, beautiful, not easy to oxidize, more stable transmission
.Resistant to plugging and unplugging (TYPE C connector up to 10,000 times)
USB3.1 10Gb/s
.Inner layer of cotton thread design to strengthen the tension of the thread body
.Conductor aluminum foil + staggered braid design, more stable transmission
. UL fire-resistant outer cover
.Downward compatible with USB2.0/1.0
.Connected to a computer for data transfer
.Double-sided universal plug, no direction, can be plugged forward or reverse.
.Aluminum alloy + PVC covering in one piece, the SR head is not easily damaged
.Oxygen-free copper conductor, specially designed for high-speed transmission
.Non-toxic and environmentally friendly wire, passed RoHS inspection
