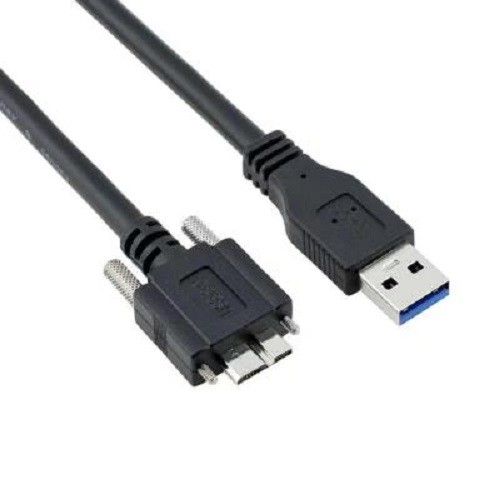

USB3.0 with lock

◆ The female head is lockable, using M3 screws
◆ The center distance between the two screw holes is about 30~30.5mm, which has some flexibility.
◆ Designed in compliance with USB3.0 standard
◆ Metal braided mesh shields against noise interference
◆ Wire diameter is about 5.5mm, double grid isolation design
◆ Provides data transfer speed up to ten times higher than USB 2.0
◆ Hot-swappable, plug and play
◆ High-speed and efficient transmission cable to ensure the best USB performance
◆ Suitable for extending USB3.0/USB2.0 signal transmission
◆ Support USB3.0 (5Gbps), backward compatible with USB 2.0/1.1 specifications
◆ Mainly used for USB3.0 industrial cameras
◆ Micro USB3.0 end has lockable screws, M2 specification, the center distance between the two screws is about 18mm
◆ USB3.0 wire core uses 24AWG/28AWG and has a three-layer shielding design to isolate signal interference
◆ Designed in compliance with USB3.0 standards (UL2725&VW-1)
◆ Support USB3.0 (5Gbps), backward compatible with USB 2.0/1.1 specifications
◆ The length of the wire including the connector is about 3 meters, and the diameter is about 5.5mm
◆ This model is shipped in blue and black, so you don’t have to choose the color when shipping.
