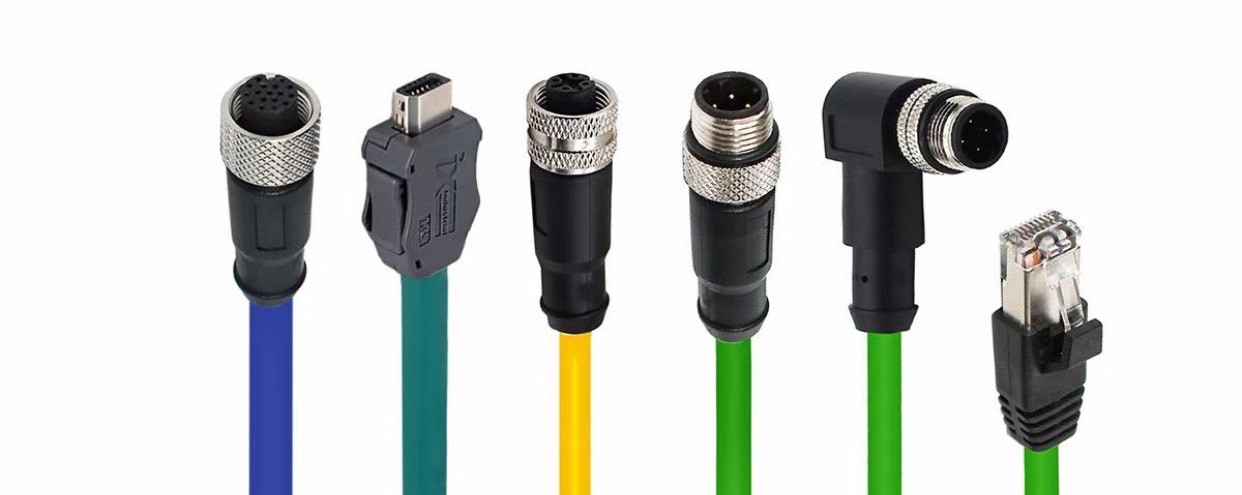

M12 waterproof head / M12 waterproof connector
M12 connectors are used in waterproof connection interfaces in industries such as automobiles, textiles, food and ICT.
Jinlai Electronics is Taiwan's professional manufacturer of M12 waterproof connectors. In addition to M12 circular connectors, Jinlai Electronics UL electronic connection cables, USB/HDMI/3C computer cables/network cables/flexible cables/coaxial cables/automotive/medical cables In addition, it also focuses on the development of M12 waterproof connectors. 。
M12 connectors offer several features, including waterproof protection (IP65/IP68/IP69K), cross-manufacturer compatibility (IEC 61076-2), and multi-purpose applications (signal, power, network).The standard coding (Coding) of M12 includes A, B, D, K, L, X, S, and Y coding. Each coding has its own specific functions to meet different application needs.
For example:
A code: used for signal and data transmission.This type of coded connector is suitable for applications that need to transmit signals and data, such as sensors, controllers, etc.(4A/250V)
B encoding: Mainly used for industrial Ethernet and other data communication applications.This type of coded connector is suitable for applications requiring high-speed data transmission.(4A/250V),
D-coding: Also used in industrial Ethernet networks and other data communications applications, but its design is more rugged and suitable for applications in harsh environments.(4A/250V)
K code: Mainly used for AC motors and power supplies.This coded connector has higher voltage and current capabilities and is suitable for devices requiring higher power.
L coding: suitable for DC motors and drives.This coded connector is specifically designed for DC power and motor control applications.(63V/16A)
X encoding: used for CAT6A high-speed data transmission.This coded connector supports high-speed data transmission and is suitable for applications requiring high-speed network connections.(10Gbit 0.5A/48V),
S code: suitable for AC motors and power supplies.This coded connector has additional electrical features suitable for specific power supply needs.(630V/12A)
Y coding: Provides both power and data transmission.This coded connector carries both power and data signals, making it ideal for applications that require a single interface to perform multiple functions.It can provide power (30V/6A) and data (0.5A) transmission at the same time.
Each encoding has its specific application scenarios and functions, and the appropriate M12 connector can be selected according to specific application requirements.
M12 connectors also have a variety of mounting and locking methods, including screw lock, fast lock and push pull locking specifications, as well as 90 degrees or 180 degrees for panel mount connectors configuration.In addition, we offer a variety of outer covering materials and predefined cable lengths to meet the different needs of our customers.Our M12 quick assembly kit can be used for on-site assembly, eliminating the tedious welding process and providing customers with a more convenient solution.

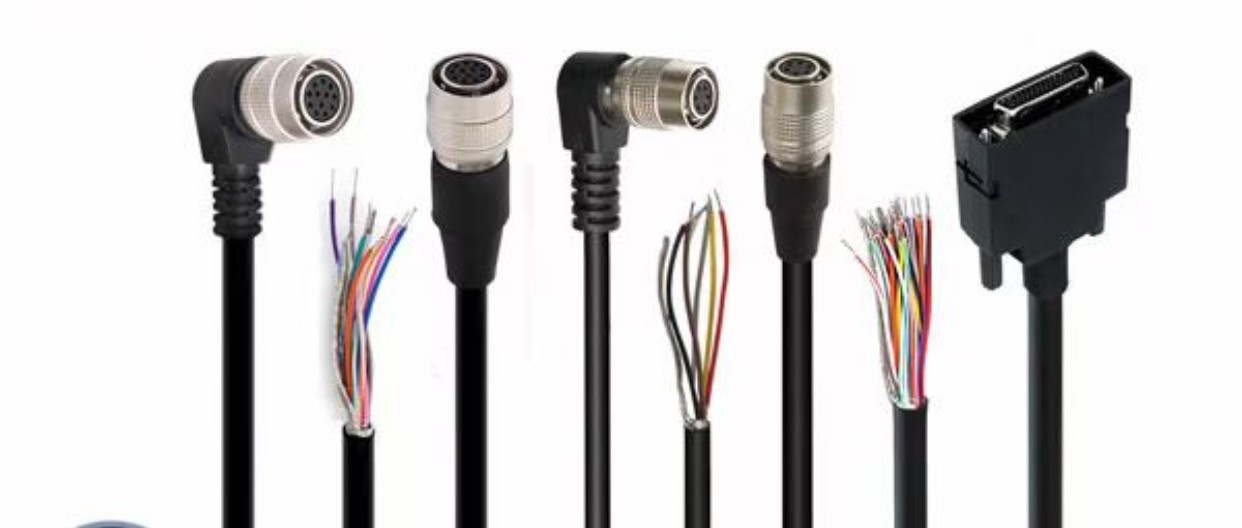

waterproof head Product Description :
Waterproof heads and cables are critical electronic components that provide reliable connections and protection in wet or splash-exposed environments.These waterproof-tipped products provide effective waterproofing and sealing solutions for your electronic devices, ensuring excellent performance under extreme conditions.
Features:
Waterproof head design: Using a professional waterproof head, it can effectively isolate moisture, moisture and dust to ensure that internal components are not damaged.
Waterproof wire: Use high-quality waterproof wire with excellent insulation properties to maintain stable signal transmission in humid environments.
Sealing technology: Advanced sealing technology ensures that the connection points cannot be affected by external conditions and provides reliable waterproofing.
Resistant to environmental conditions: The waterproof head and waterproof line are designed with extreme environmental conditions in mind and can cope with challenges such as moisture, high temperature, and low temperature.
Various applications: Suitable for outdoor electronic equipment, underwater equipment, automotive electronics, aerospace and other fields.
Application areas:
Outdoor electronic equipment
Automotive electronic systems
Marine Science and Technology
Aerospace applications
automated industry
Quality Assurance:
Jinlai electronic waterproof heads and waterproof cables undergo strict quality control to ensure their reliability and durability under harsh conditions.The product complies with international waterproofing standards and provides excellent protective performance for your equipment.
Whether you're on an outdoor adventure or in extreme environments, Jinlai waterproof heads and cables are ideal for ensuring your electronic devices function properly in any situation.A rugged, reliable waterproof solution that keeps your device performing at its best. Excellent quality, welcome to call us! Sales method: manufacturing, exporting
Sales target market: Global
competitive characteristics
Unique designs or logos accepted: Special designs or logos accepted
Diverse designs: King Lai Electornics Co.,Ltd. provides diversified designs of the M12 waterproof head series
The M12 waterproof head series accepts original factory commissioned design and manufacturing ODM
The M12 waterproof head series accepts original factory entrustment for OEM manufacturing.
