DVI-D (24+1) male to HDB 15 female cable

 DVI-D (24+1) male to hdb 15 female

Used to connect different types of video input and output interfaces

Main specifications

Connector terminal 1:DVI-D (24+1) male

Connector Terminal 2: HDB 15 Pin Female

Wire outer quilt: PVC

Outer cover color: milky white

Connector material: gold plated

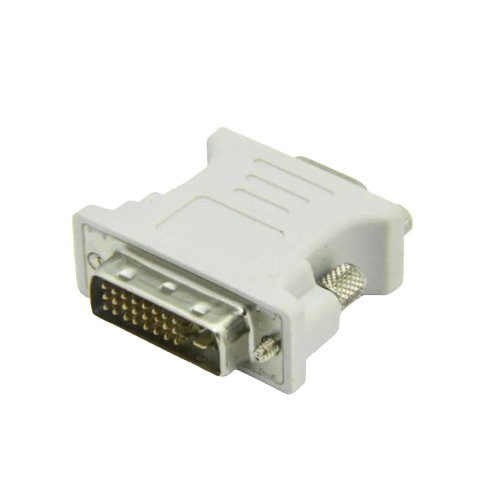

DVI-D(24+1) male to 15 female adapter

Product name:

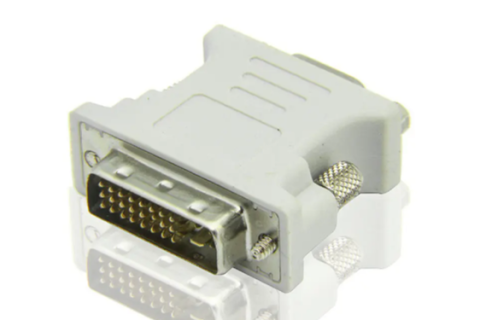

DVI-D 25 male/VGA 15 female adapter (screen DVI 24+1 male to D SUB D-SUB VGA 15 female digital video connection/converter)

Product features:

█ DVI to HDB connector

The first terminal of the adapter is DVI-D (24+1) male. This type of DVI connector is usually used to transmit digital video signals and supports high-resolution and digital audio. The 24+1 indicates that the connector has 24 digital video channels and 1 additional channel for additional digital audio or other functions.

The second terminal is the HDB 15 Pin female connector, which is a VGA (Video Graphics Array) interface usually used to transmit analog video signals. The existence of this adapter allows users to connect a device that supports DVI to a device that supports VGA, or a device that supports VGA to a device that supports DVI, realizing the interconnection between different interfaces. DVI-D (24+1) male to HDB 15 female provides flexibility between interfaces, allowing different types of devices to be connected to each other to ensure correct transmission of video signals.
