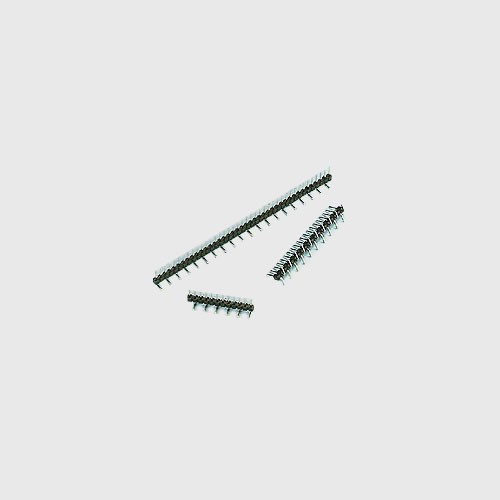

2.54mm PH01C1 Series Pin Header

Quantity:
  • PH01C1 Series ( SMD Type)
  • Quality system meets ISO 9002 standard
Product Description :
Product name: 2.54mm pin header
Model: PH01C1 series
Type: SMD Type
Insulation material: PBT GF
Contact pin: brass square pin
Plating: gold-plated, tin-plated

Specifications:
Current Rato: 1 AMP
Insulation resistance: the minimum is 5000MΩ at DC 500V.
Contact resistance: 20mΩ max at DC 100mA
Working temperature: -55℃~+105℃

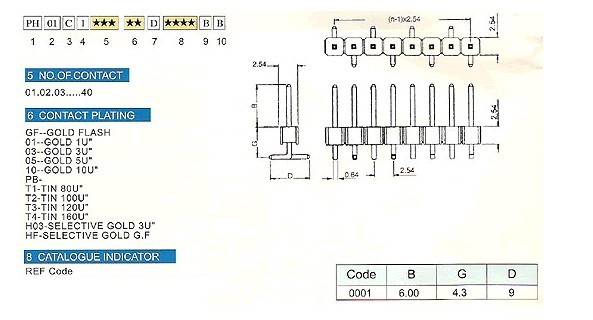

2
