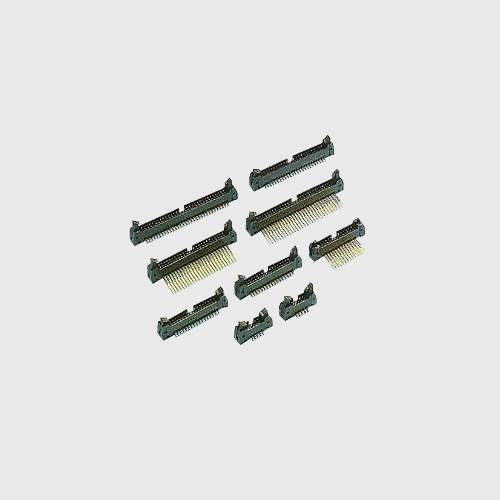

2.54mm PH01A2 Series Box Joint Connector

Quantity:

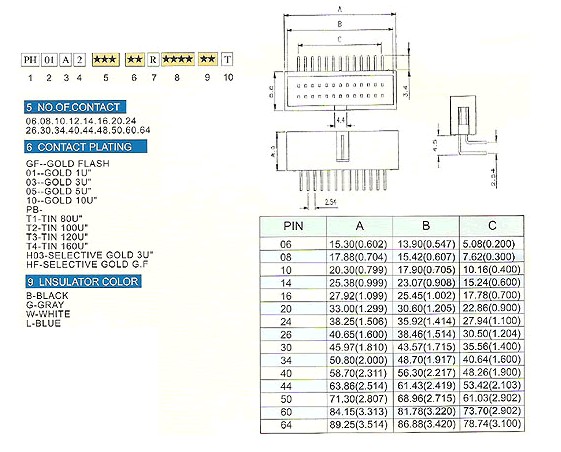

  • PH01A2 Series (Right Angle Type)

2.54mm PH01A2 Series Pin Header

Product Description :
Product name: 2.54mm box joint connector
Model: PH01A2 series
Type: Right angle type
Insulation material: PBT GF
Contact pin: brass square pin
Plating: gold-plated, tin-plated

Specifications:
Current Rato: 1 AMP
Insulation resistance: the minimum is 5000MΩ at DC 500V.
Contact resistance: 20mΩ max at DC 100mA
Working temperature: -55℃~+105℃




Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.
