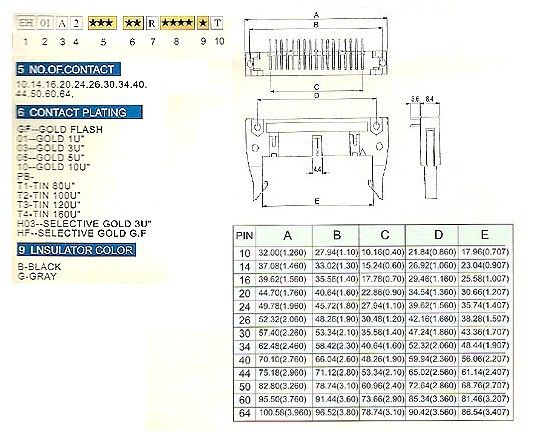

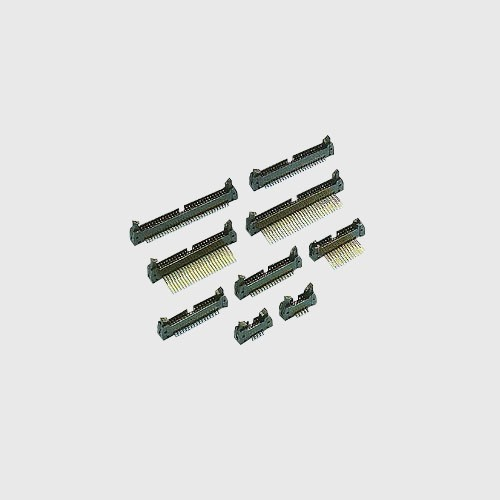

2.54mm EH01A2 Series Eject Connector

  • EH01A2 Series (Right angle)
2.54mm pop-up connector

Product Description :
Model : EH01A2 series
Type : Right angle type
Insulation materia l: PBT GF
Contact pin : brass square pin
Plating : gold-plated, tin-plated
Specifications :
Current Rato : 1 AMP
Insulation resistance : the minimum is 5000MΩ at DC 500V.
Contact resistance : 20mΩ max at DC 100mA
Working temperature : -55℃~+105℃


Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.
