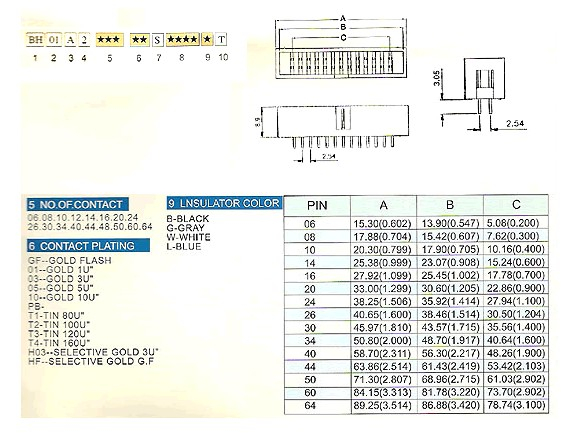

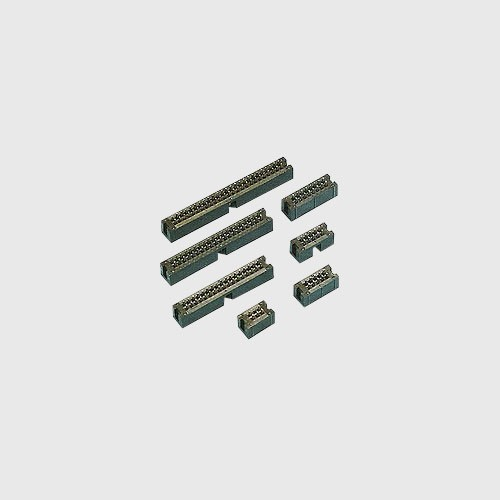

2.54mm BH01A2 Series box joint connector

Quantity:
  • BH01A2 Series (Straight Type)

  • Quality system meets ISO 9002 standard

Product Description :
Product name: 2.54mm box joint connector
Model: BH01A2 series
Type:  Straight Type
Insulation material: PBT GF
Contact pin: brass square pin
Plating: gold-plated, tin-plated

Specifications:
Current Rato: 1 AMP
Insulation resistance: the minimum is 5000MΩ at DC 500V.
Contact resistance: 20mΩ max at DC 100mA
Working temperature: -55℃~+105℃
