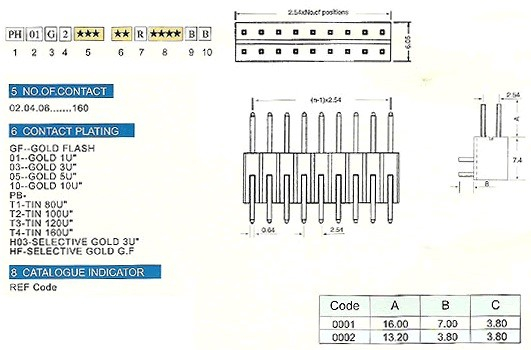

2.54*7.44mm BH01A2 Series box joint connector

  • BH01A2 Series (SMD Type)
Product Description :
2.54*7.4mm Pin Header
Product name: 2.54mm box joint connector
Model: BH01A2 series
Type: SMD Type
Insulation material: PBT GF
Contact pin: brass square pin
Plating: gold-plated, tin-plated
Current Rato: 1 AMP
Insulation resistance: the minimum is 5000MΩ at DC 500V.
Contact resistance: 20mΩ max at DC 100mA
Working temperature: -55℃~+105℃


Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.
