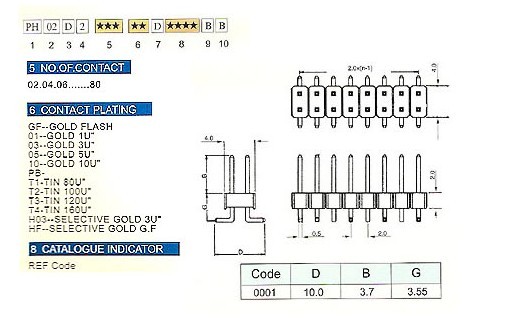

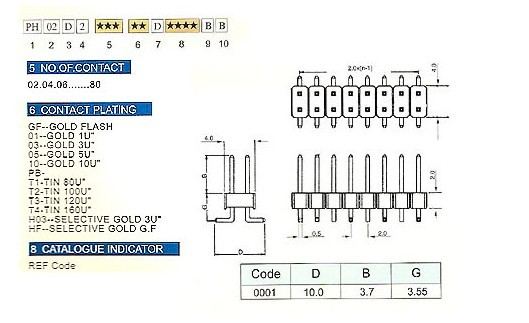

2.00mm PH02D1 Series Pin Header

Quantity:
  • PH02D1 Series (Straight Type)
Pin Header > 2.00mm >PH02D1 Series >2.00mm Pin Header

Material :
Insulator: PBT G.F
Type : Straight Type

Contact Pin: Brass Square Pin
Plated: Gold plated
              Tin Plated

Specification :
Current Rating: 1 AMP
Insulation Resistance: 5000M Ω Min at DC 500V.
Contact Resistance: 20mΩ Max. at DC 100mA
Operation Temperature: -55℃~+105℃

40276894-4010717671561109b













Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, Wholesale, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.
