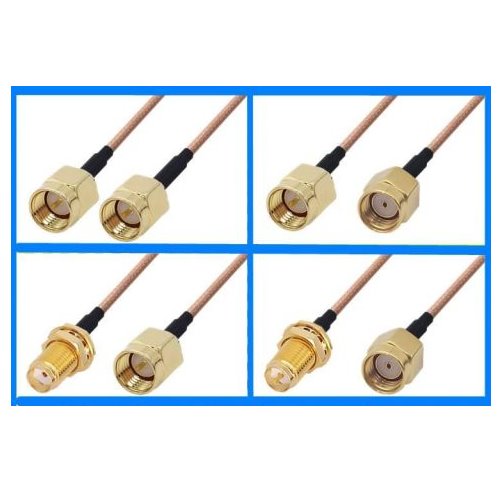

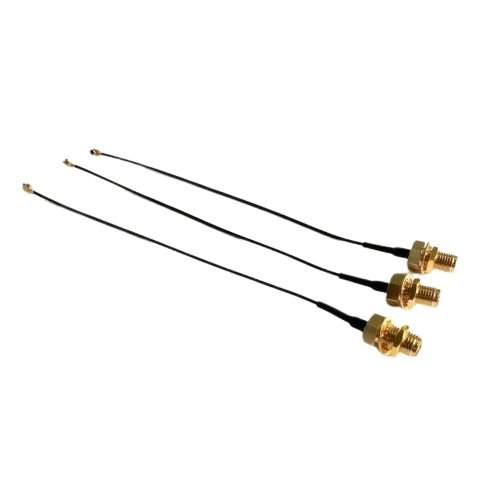

1-3 Coaxial Line
LVDS (Low-Voltage Differential Signaling) ultra-fine coaxial line
It is a cable used for data transmission, specially designed for high-speed data transmission applications.
With ultra-fine coaxial cable specifications, Jinlai Electronics can make different combinations of signals and power supplies specified by customers. The fully automated production line can be used with original I-PEX/Honda/JAE/JAM.. and other Japanese connectors, with high quality and reliability. good.
LVDS ultra-fine coaxial line features:
1. 36AWG~46AWG wire selection
2. 0.25Pitch-0.5Pitch spacing
3. Suppress excess electromagnetic interference, which means preventing EMI from mixing into other circuits and causing problems.
4. Connectors can be specified
5. The buckle design is not easy to slip off
6. 90°~180° design
7. OEM manufacturing
High-speed data transmission: LVDS ultra-fine coaxial cable is known for its extremely low voltage differential signals and excellent anti-interference capabilities, making it suitable for high-speed data transmission environments. This makes it ideal for many high-performance applications such as display connectivity, data transmission, video signal transmission, etc.
Ultra-thin coaxial structure: LVDS ultra-fine coaxial cable has an extremely thin coaxial structure, which allows it to be installed flexibly in limited spaces while reducing electromagnetic interference.
Low power consumption: LVDS technology is generally characterized by low power consumption, which makes it ideal for applications that require energy conservation and long operation times, such as portable devices, wireless communication modules, etc.
Anti-interference: The differential signal architecture of LVDS ultra-fine coaxial lines provides strong anti-noise and interference capabilities, which enables it to transmit data stably and reliably in industrial environments, even in environments with strong electromagnetic interference. Can maintain high quality signal.
Suitable for high-resolution displays: Due to its high-speed transmission and excellent signal integrity, LVDS ultra-thin coaxial cable is often used to connect high-resolution displays such as liquid crystal displays (LCDs) and organic light-emitting diode displays (OLEDs).
Applications of LVDS ultra-fine coaxial lines:
Display Technology: LVDS ultra-fine coaxial cables are commonly used to connect displays such as liquid crystal displays (LCDs) and organic light-emitting diode displays (OLEDs). This cable can transmit data at high speeds while maintaining signal integrity, making it suitable for high-resolution and high-refresh rate display applications.
1. Data transmission: LVDS ultra-fine coaxial cable is suitable for scenarios that require high-speed and reliable data transmission, such as internal connections in computers, internal connections in data chassis, etc.
2. Camera and video transmission: In camera and video transmission applications, LVDS ultra-thin coaxial cable can provide high-quality image transmission while adapting to connection needs in narrow spaces.
3. Medical equipment: In medical equipment, LVDS ultra-fine coaxial lines can be used to connect medical imaging equipment, such as ultrasound scanners, X-ray monitors, etc., to ensure high-quality image transmission.
4. Industrial control: Due to the anti-interference characteristics of LVDS, it is also widely used in industrial control systems and is used to connect various industrial instruments and equipment.
5. Automotive applications: Inside the car, LVDS ultra-fine coaxial lines can be used to connect in-car entertainment systems, dashboard displays, etc., and have the ability to resist vehicle vibration and noise.
