22-2 1.27*2.54mm Pin Header, Taiwan 22-2 1.27*2.54mm Pin Header

Model:
PH01G2 Series

Product Description

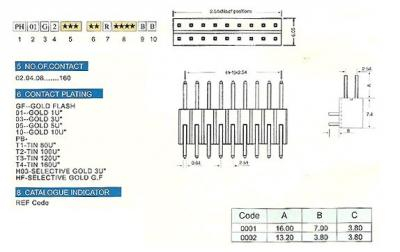

PH01G2 Series >1.27*7.44mm Pin Header

Material :

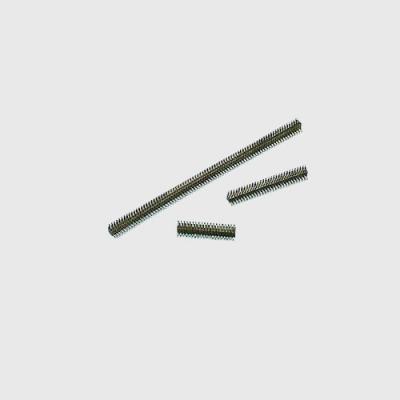

Name: 2.54*7.44mm pin header

Model: PH01G2 series

Type: Right angle

Insulation material: PBT GF

Contact pin: brass square pin

Plating: gold-plated, tin-plated

Specification :
Current Rating: 1 AMP
Insulation Resistance: 5000M Ω Min at DC 500V.
Contact Resistance: 20mΩ Max. at DC 100mA
Operation Temperature: -55℃~+105℃

40276894-402768941031088b-400-400

Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, Wholesale, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.

Contact Us

Jing Zan International Co., Ltd.
Add ： 2F, No. 61-7, Fusing Rd.,
Keelung, Taiwan
E-mail：jingzantw@gmail.com
Tel： 886-2-2437-1118
Phone： +886-917261588
Fax： 886-2-2437-6885
www.king-lai.com.tw
line id 0920261588
