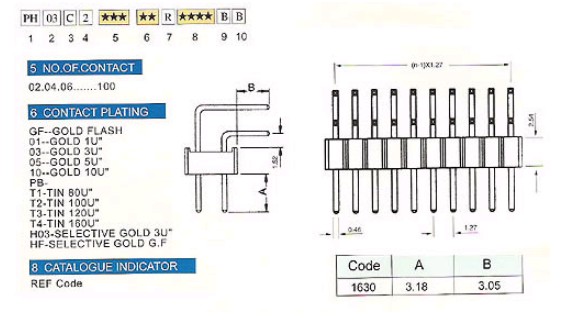

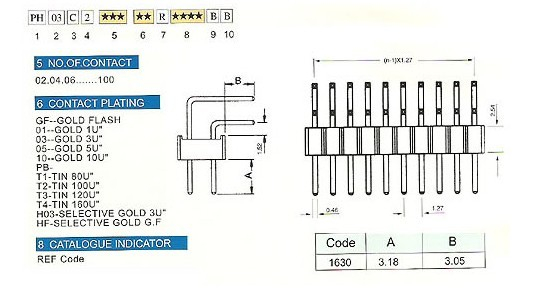

1.27*2.54mm PH03C2 Series Pin Header

5 0 Reviews
Quantity:
  • PH03C2 Series (Right Angle Type)

Pin Header > 1.27*2.54mm >PH03C12Series >1.27*2.54mm Pin Header

Material :
Insulator: NYLON-6T G.F
Type : Right Angle Type

Contact Pin: Brass Square Pin
Plated: Gold plated
              Tin Plated

Specification :
Current Rating: 1 AMP
Insulation Resistance: 5000M Ω Min at DC 500V.
Contact Resistance: 20mΩ Max. at DC 100mA
Operation Temperature: -55℃~+105℃







Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, Wholesale, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.
