Pin Header > 1.27*1.27mm >PH04F2 Series >1.27*1.27mm Pin Header Material :

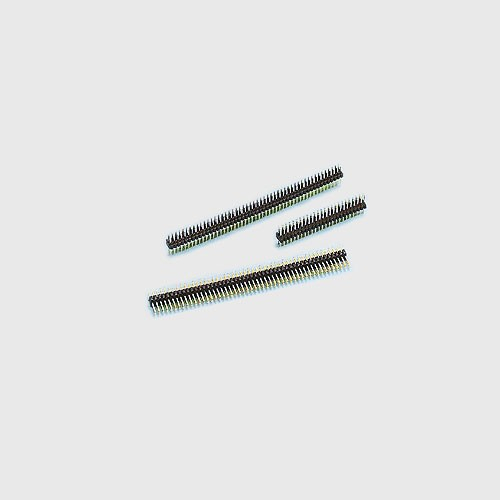

Product Name : 1.27*1.27mm Pin Header

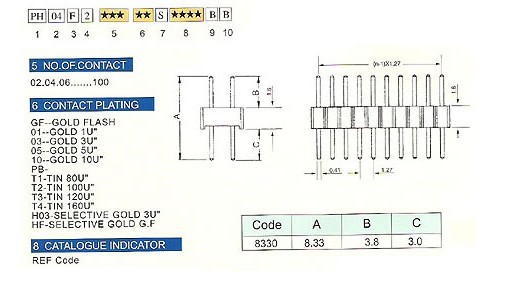

Series : PH04F2
Type : Straight Type
Insulation material: NYLON-6T GF
Contact pin: brass square pin
Plating: gold-plated, tin-plated
Specifications:
Current Rato: 1 AMP
Insulation resistance: the minimum is 5000MΩ at DC 500V.
Contact resistance: Maximum 20mΩ at DC 100mA
Working temperature: -55℃~+105℃
Competitive Price:
Place of Origin: Taiwan, Taipei
Sales Method: Export, Manufacture, Wholesale, OEM/ODM
Payment Term: T/T
Safety/Quality Approvals: Quality system meets ISO 9002 standard & UL verification.
