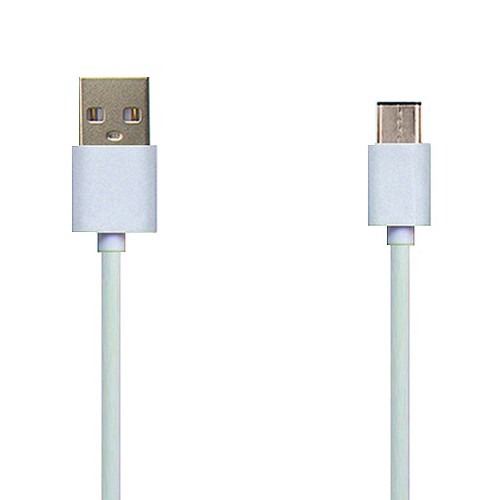

USB 2.0 A male to TYPE C
Designed for the latest Laptop charging accessories
◆Suitable for charging Nokia tablet N1 and Google’s new Chromebook Pixel
◆Can be used with USB charger and mobile power supply for charging at any time
◆Type-C connector is 24Pin, supports front and back insertion and removal
feature of product
•Type-C supports front and back double-sided blind insertion
•Supports the latest USB Type-C devices and computers
•Downward compatible with USB 1.1
•The joints use standard drawing processes and are formed in one piece without seams, making them strong and durable.
•Supports PD power transmission function, providing maximum power transmission (Max-36W)
•Gold-plated contacts, stable quality
Technical specifications
Connector information
•Front connector: USB Type-C male
•Rear-end connector: USB Type-C male
• Shell material: PVC
•Connector material:
•Contact structure: pull
•Dimensions: 25.7 x 12 x 7.3mm (WxDxH)
Wire information
•Standard: USB 2.0
•color: White
•Type: Flat
•Wire diameter: 4.5mm
•Coat material: PVC
•Conductor material: tinned copper
•Wire gauge: 24AWG
Technical information
•Supported bandwidth: 480Mbps
•Maximum current: 3A
•Maximum voltage: 12V
•Maximum power: 36W
•Operating temperature: -5°C ~ 60°C
•Storage temperature: -10°C ~ 65°C
•Weight: 86g (including packaging)
•Length: 2m
•made in China
Sales method: manufacturing, exporting
Sales target market: Global
competitive characteristics
Unique designs or logos accepted: Special designs or logos accepted
Diverse designs: King Lai Electornics Co.,Ltd. provides diverse designs of USB 2.0 A male to TYPE C
USB 2.0 A male to TYPE C accepts original factory commissioned design and manufacturing ODM
USB 2.0 A male to TYPE C is accepted for OEM manufacturing.
