Product Description

Self-locking connectors are generally compatible with LEMO connectors, such as the LEMO.FGG series 00B, 0B, 1B, 2B, and 3B multi-core aviation plugs.

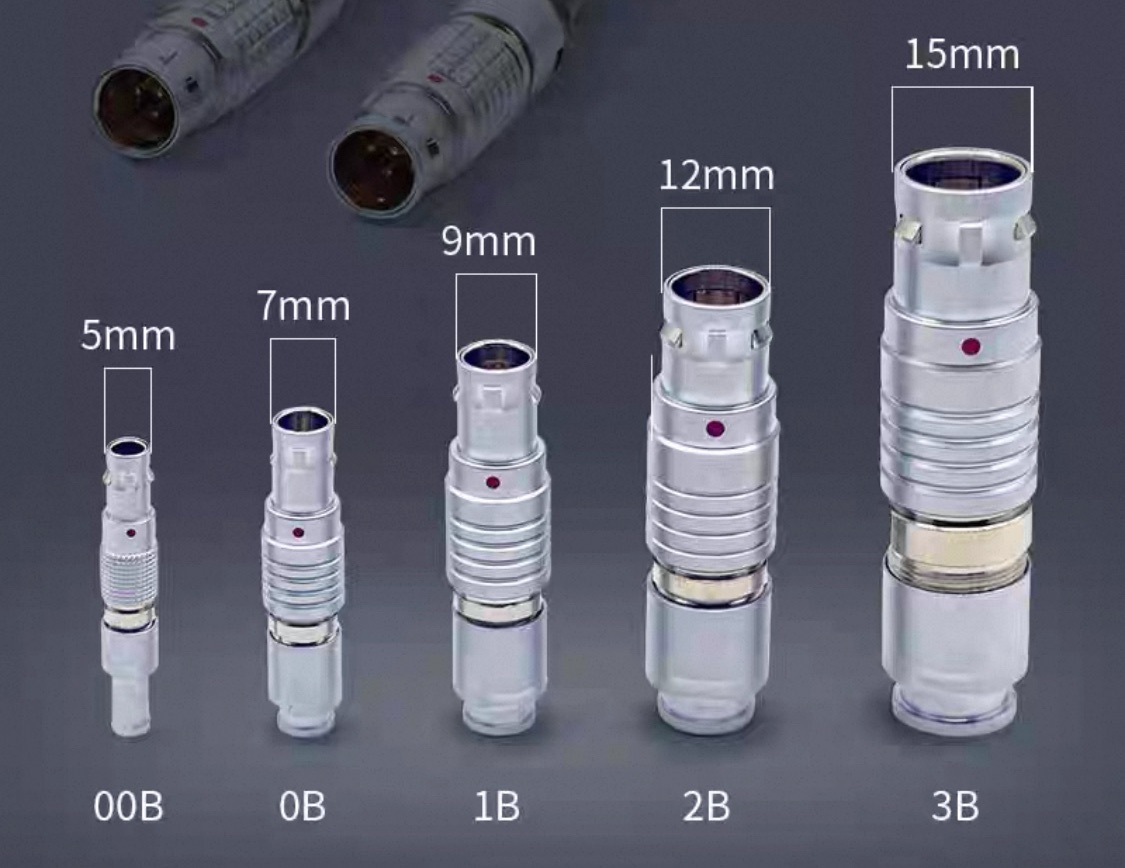

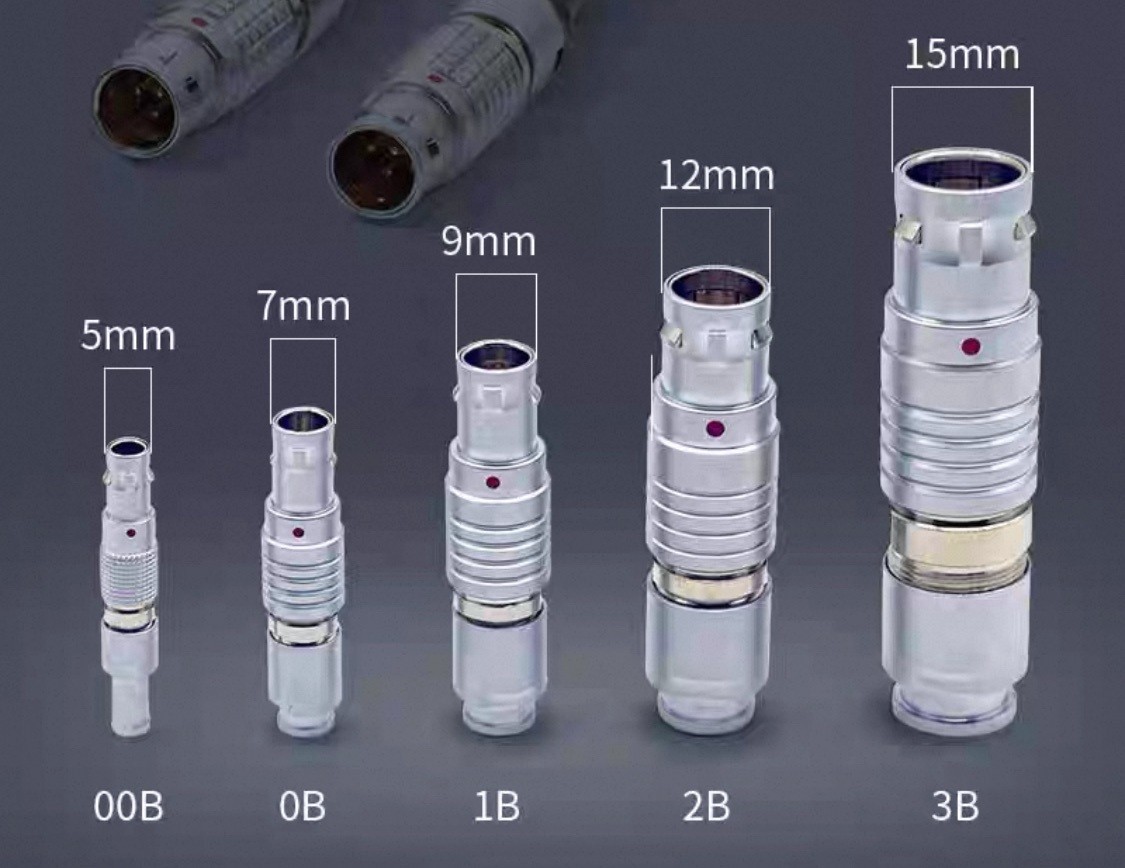

The figure shows different types of self-locking connectors and their corresponding dimensions:

00B type, 5mm diameter.

0B type, 7mm diameter.

1B type, 9mm diameter.

2B type, 12mm diameter.
3B type, 15mm diameter.

1. Housing: Chrome-plated brass

2. Latch sleeve: Nickel-plated brass

3. Inner housing: Nickel-plated brass

4. Retaining ring: Nickel-plated brass

5. Collet nut: Chrome-plated brass

6. Split blade holder: Nickel-plated brass

7. Insulator: PPS (Phenylenesulfide)

8. Public contact: Brass with gold plating

9. Grounding cone: Nickel-plated brass

10. Collet: Nickel-plated brass

11. Gasket: Plastic

12. Washer: Stainless steel

Industrial Applications:

Medical connectors: Analyzers, processing equipment, dental equipment, electrosurgical equipment, pacemakers, and hearing devices

Audio-video connectors: HDTV/media converters, remote cams/motion pict cams (indoor/outdoor), analog audio/video, digital audio, lighting Indoor/Outdoor;

Test and Measurement Connectors: GPS (portable or vehicle-mounted), high-voltage testing, instrumentation, signal sources, analyzers, weather sensors, quality inspection;

Information Systems Connectors: Certification equipment, computers (outdoor), input devices, printers/copiers;

Automotive Connectors: Cars/Trucks (interior), crash dummies, engine compartments, emergency vehicles;

Research Connectors: Robotics, subatomic research, physics research, laboratories;

Aerospace Connectors: Aircraft/Helicopters, baggage screeners;

Communications Connectors: Antennas - indoor/outdoor, headsets/IBF (reporters), remote controls, RF/uWave;

System Control Connectors: Security/Surveillance - indoor/outdoor.

Features:

• In-line plug with screw cap for flex release.

• Push-pull self-locking system for easy mating and removal.
• Multiple contact types (2 to 26 contacts)

• Solder pins for cables

• Keying system ("G" key standard) for connector alignment

• Multiple keying options to avoid cross-mating of similar connectors

• High packing density for space savings

• 360° shielding for complete EMC shielding.

Technical Features:

1. Endurance:> 5000 mating cycles;

2. Humidity: Up to 95% at 60°C;

3. Temperature range: -45°C, +125°C;

4. Vibration resistance: 15g [10Hz-2000Hz];

5. Shock resistance: 100g, 6ms;

6. Salt spray corrosion test:> 48h;

7. Protection index (mated): IP50.

Change specifications

Customized drawings and samples available. Multiple specifications available.

Excellent quality. Welcome to inquire!

Competitive Price:
Place of Origin: Taiwan
Sales Method: Export, Manufacture, OEM/ODM
Payment Term: T/T, L/C
Safety/Quality Approvals: Quality system meets ISO 9002 standard
