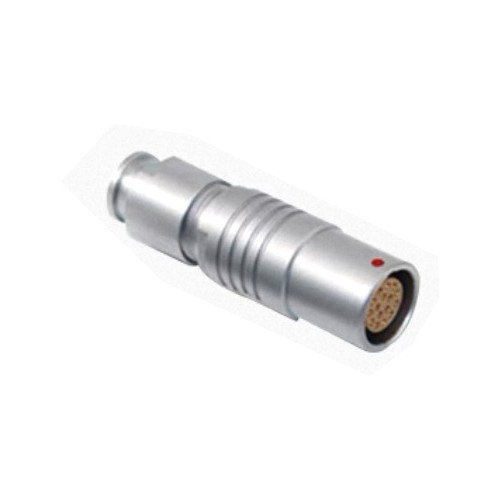

LEMO aviation plug PHG push-pull self-locking connector, FGG series floating multi-pin receptacle.
Metal push-pull self-locking connector compatible with B series PHG receptacles. Metal circular connectors with 2P, 3P, 4P, 7P, and 26P pins.

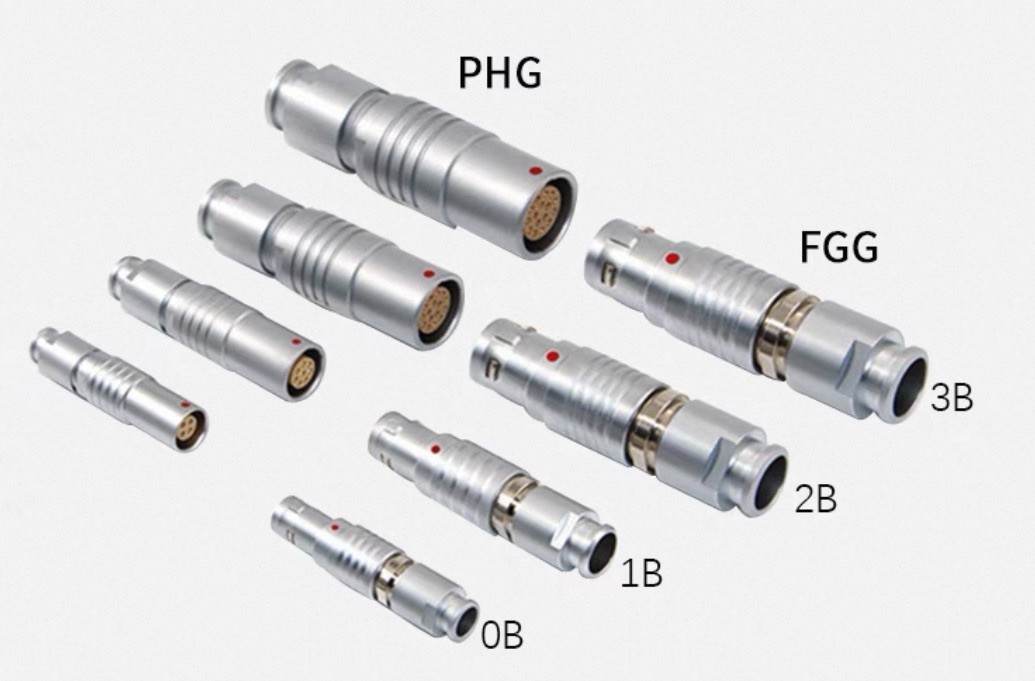

Compatible with LEMO connector push-pull self-locking aviation mating PHG receptacles 00B, 0B, 1B, 2B, and 3B pins.
Product Name: Metal connectors for 3P, 4P, 7P, and 26P pins, collar connectors, circular panel mounts for 3, 4, 7, and 26P pins. Metal Plug
Product Features:
1. Shell: Chrome-plated brass
2. Latch sleeve: Nickel-plated brass
3. Inner shell: Nickel-plated brass
4. Retaining ring: Nickel-plated brass
5. Collet nut: Chrome-plated brass
6. Split blade holder: Nickel-plated brass
7. Insulator: PPS (Phenylenesulfide)
8. Public contact: Brass with gold plating
9. Grounding cone: Nickel-plated brass
10. Collet: Nickel-plated brass
11. Gasket: Plastic
12. Washer: Stainless steel
Industrial Applications:
Medical connectors: Analyzers, processing equipment, dental equipment, electrosurgical equipment, pacemakers, and hearing devices;
Audio-video connectors: HDTV/media converters, remote cams/motion pict cams (indoor/outdoor), analog audio/video, digital audio, lighting Indoor/Outdoor;
Test and Measurement Connectors: GPS (portable or vehicle-mounted), high-voltage testing, instrumentation, signal sources, analyzers, weather sensors, quality inspection;
Information Systems Connectors: Certification equipment, computers (outdoor), input devices, printers/copiers;
Automotive Connectors: Cars/Trucks (interior), crash dummies, engine compartments, emergency vehicles;
Research Connectors: Robotics, subatomic research, physics research, laboratories;
Aerospace Connectors: Aircraft/Helicopters, baggage screeners;
Communications Connectors: Antennas - indoor/outdoor, headsets/IBF (reporters), remote controls, RF/uWave;
System Control Connectors: Security/Surveillance - indoor/outdoor.
Features:
• In-line plug with screw cap for flex release.
• Push-pull self-locking system for easy mating and removal. • Multiple contact types, 2 to 26 contacts
• Solder pins for cables
• Keying system ("G" key standard) for connector alignment
• Multiple keying options to avoid cross-mating of similar connectors
• High packing density for space savings
• 360° shielding for complete EMC protection.
Technical Features:
1. Endurance:> 5000 mating cycles;
2. Humidity: Up to 95% at 60°C;
3. Temperature range: -45°C to +125°C;
4. Vibration resistance: 15g [10Hz-2000Hz];
5. Shock resistance: 100g, 6ms;
6. Salt spray corrosion test:> 48h;
7. Protection rating (mated): IP50.
*CS1P-03APNS-00 Male 3P Ferrule Connector
*Body: Zinc Alloy Nickel-Plated
*Pin: Brass Gold-Plated
*Insulator: Bakelite
*Rated Current: 5A
*Rated Voltage: 125V
*Withstand Voltage for 1 Minute: ≥1000V
*Insulation Resistance: ≥1000MΩ
*CS1A-03ASNS Female 3P Round Panel Connector
*Body: Zinc Alloy Nickel-Plated
*Pin: Brass Gold-Plated
*Insulator: Bakelite
*Rated Current: 5A
*Rated Voltage: 125V
*Withstand Voltage for 1 Minute: ≥1000V
*Insulation Resistance: ≥1000MΩ
*CS1P-04APNS-00 Male 4P Ferrule Connector
*Body: Zinc Alloy Nickel-Plated
*Pin: Brass Gold-Plated
*Insulator: Bakelite
*Rated Current: 5A
* Rated voltage: 125V
* Withstand voltage for 1 minute: ≥1000V
* Insulation resistance: ≥1000MΩ
* CS1A-04ASNS female 4P round panel socket
* Body: Nickel-plated zinc alloy
* Contacts: Gold-plated brass
* Insulator: Bakelite
* Rated current: 5A
* Rated voltage: 125V
* Withstand voltage for 1 minute: ≥1000V
* Insulation resistance: ≥1000MΩ

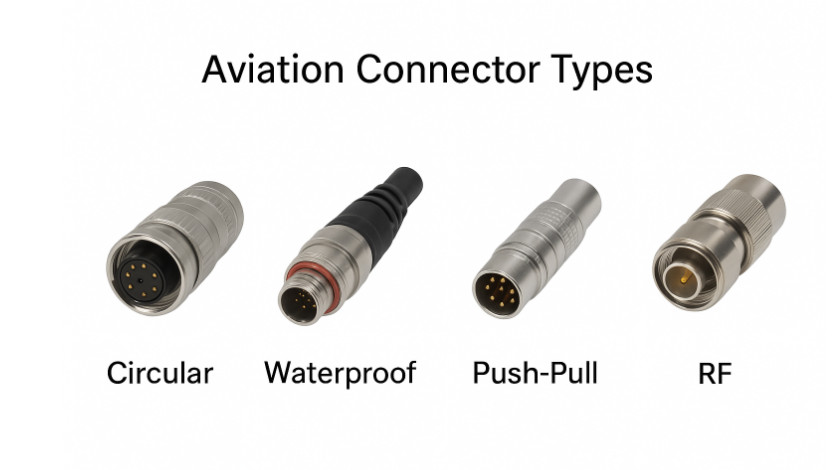

Above: Comparison of common aviation connector types: round, waterproof, push-pull self-locking, RF coaxial
Change specifications
Custom designs and samples are available. Multiple specifications are available.
Excellent quality. Welcome to contact us!
