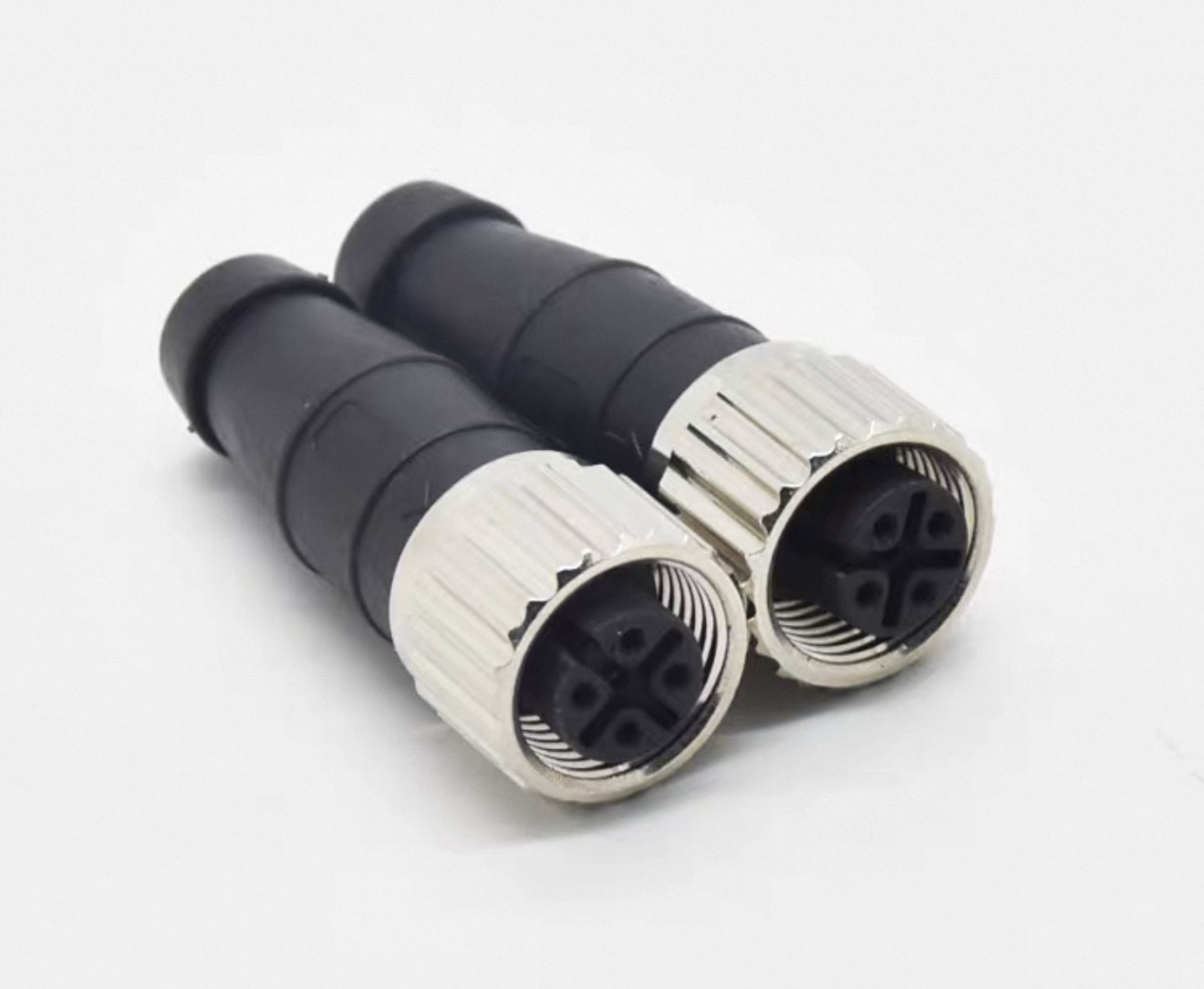

Marine Waterproof Plug and Socket for Boat Electrical Systems

Product Overview

The Marine Waterproof Plug and Socket provides a secure and detachable electrical connection for boats, yachts and other marine equipment. Designed for applications where electrical devices require installation, removal or regular maintenance, the connector allows equipment to be disconnected without cutting or rewiring the cable.

The sealed mating interface helps protect the electrical connection from moisture and water spray when correctly assembled, while the locking or threaded structure helps prevent unintended separation during operation.

Different pin configurations, mounting styles, cable interfaces and electrical ratings can be selected according to the equipment requirements. The connector can be used with compatible marine lighting, pumps, sensors, control panels and other onboard electrical systems.

For boat builders, marine equipment manufacturers and system integrators, customized connector configurations can also be developed based on samples, drawings or equipment interfaces.

Key Features & Buyer Benefits

Designed for Easy Equipment Connection and Maintenance

Marine electrical equipment often requires periodic inspection, replacement or servicing. Permanent cable joints can make these operations difficult because technicians may need to cut and reconnect the wiring whenever equipment is removed.

The Marine Waterproof Plug and Socket creates a detachable interface between the equipment and wiring system. Once unlocked, compatible equipment can be removed independently without rebuilding the complete electrical circuit.

This design is especially useful for boat manufacturers and equipment suppliers that need repeatable, standardized connections across multiple products or installation projects.

Typical Applications

The Marine Waterproof Plug and Socket can be configured for compatible equipment such as:

• Marine LED lighting

• Deck and cabin lights

• Navigation lights

• Bilge and water pumps

• Marine sensors

• Monitoring equipment

• Control panels

• Switch boxes

• Marine electronic accessories

• Low-voltage onboard electrical equipment

• Outdoor electrical equipment exposed to moisture

Final suitability should be confirmed according to voltage, current, pin configuration, cable size and environmental requirements.

Customization Options

Different connector configurations can be supplied according to the equipment interface and electrical system.

Available options may include:

• Number of pins

• Male connector

• Female connector

• Plug and socket combination

• Panel-mount or cable-mount configuration

• Straight or angled connector

• Connector housing color

• Contact configuration

• Cable entry diameter

• Cable length

• Wire gauge

• Product labeling

• Logo marking

• Individual or bulk packaging

Customers may provide an existing connector, equipment sample, dimensional drawing, connector photograph or electrical diagram for compatibility evaluation.

Technical Specifications

Note: Waterproof performance depends on the connector model, mating condition, assembly method and test requirements. The applicable waterproof rating should be confirmed according to the actual specification or test report.

How to Select the Right Marine Plug and Socket

Before selecting a connector, buyers should confirm:

1. Required number of pins

2. Equipment operating voltage

3. Maximum operating current

4. Power or signal transmission

5. Cable diameter

6. Required wire gauge

7. Panel-mount or cable-mount installation

8. Available installation space

9. Required waterproof rating

10. Estimated purchasing quantity

Providing a connector sample or dimensional drawing can help improve model selection accuracy.

Quality Inspection

Depending on the connector configuration, inspection may include:

• Connector dimensions

• Housing appearance

• Contact and pin arrangement

• Male and female mating

• Locking performance

• Electrical continuity

• Contact stability

• Cable interface inspection

• Waterproof testing where applicable

• Final labeling and packaging inspection

Inspection requirements should be confirmed according to the actual model and project specification.

Why Choose Our Marine Waterproof Connectors

OEM Connector Configuration

Pin arrangement, cable interface, mounting method and other specifications can be configured according to equipment requirements.

Sample and Drawing Evaluation

Existing connectors, samples, photographs or drawings can be reviewed before model selection.

Support for Equipment Integration

Suitable for boat manufacturers, marine equipment suppliers and electrical system integrators requiring standardized detachable connections.

Consistent Batch Production

Confirmed specifications can be incorporated into production and inspection requirements to help maintain consistency across repeat orders.

Frequently Asked Questions

Can I purchase the male and female connectors separately?

Depending on the model, male connectors, female connectors or complete plug-and-socket sets may be available. Please confirm the required configuration when requesting a quotation.

Can you match our existing connector?

Yes. You can provide photos, dimensions, drawings or physical samples for compatibility evaluation.

How many pins are available?

Pin configuration depends on the connector series. Please provide your circuit requirements so that an appropriate model can be recommended.

Can the connector be panel mounted?

Panel-mount and cable-mount configurations may be available depending on the model and application.

Is the connector IP67 or IP68?

The applicable waterproof rating depends on the connector design, assembly condition and test standard. Please refer to the confirmed specification or test report.

What information is required for a quotation?

Please provide the number of pins, voltage, current, cable diameter, installation method, connector quantity and application. Photos or drawings are recommended.
