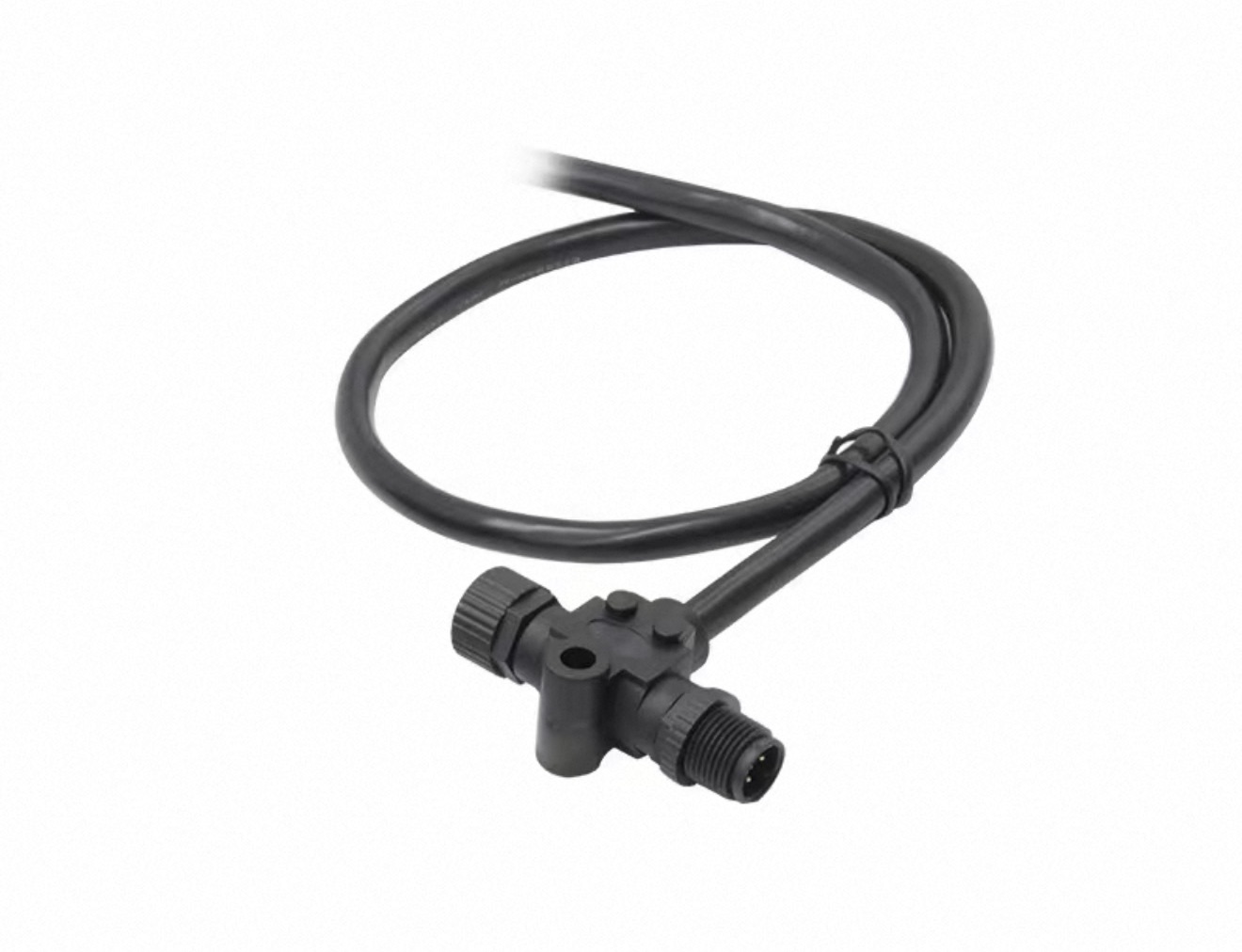

Marine Waterproof Connector Cable Assembly for Boat Electrical Systems

Product Overview

The Marine Waterproof Connector Cable Assembly is designed for reliable power or signal transmission in boats, yachts and other marine electrical systems. It combines a pre-assembled cable with matched waterproof connectors, helping boat builders, marine equipment manufacturers and electrical installers reduce on-site wiring work and improve installation consistency.

The detachable plug-and-lock design allows compatible equipment to be connected, inspected or replaced without cutting and reconnecting the cable. Cable length, wire gauge, connector type, pin configuration and electrical ratings can be selected according to the connected equipment and installation environment.

This cable assembly is suitable for marine lighting, pumps, sensors, control panels and other compatible onboard electrical devices. Standard and customized configurations are available for OEM production, equipment integration and replacement projects.

Key Features and Buyer Benefits

Designed for Efficient Marine Wiring

Traditional field wiring often requires installers to cut cables, strip insulation, terminate conductors and seal every connection separately. This process increases installation time and may result in inconsistent connection quality.

The Marine Waterproof Connector Cable Assembly integrates the cable and connectors into one ready-to-connect component. This reduces the number of installation steps and helps technicians complete equipment wiring more efficiently.

Its detachable structure also allows individual equipment to be removed for inspection or replacement without rebuilding the complete circuit, helping reduce maintenance time and long-term service costs.

Typical Applications

The cable assembly can be configured for compatible marine and outdoor electrical equipment, including:

• Boat and yacht LED lighting

• Deck, cabin and navigation lighting

• Bilge pumps and water pumps

• Marine sensors and monitoring devices

• Control boxes and switch panels

• Navigation and communication accessories

• Low-voltage onboard electrical equipment

• Outdoor electrical systems exposed to moisture

Final suitability depends on the selected connector, voltage, current, conductor size, pin configuration and environmental requirements.

Customization Options

For boat manufacturers, marine equipment suppliers and system integrators, the cable assembly can be configured according to the equipment interface and wiring layout.

Available options may include:

• Number of connector pins

• Male and female connector combination

• Cable length

• Wire gauge or conductor cross-section

• Cable jacket material

• Connector housing material

• Straight or angled connector orientation

• Cable and connector colors

• Power or signal configuration

• Input and output arrangement

• Product labels and identification

• Logo marking

• Individual or bulk packaging

Buyers may provide a connector sample, product photograph, wiring diagram, dimensional drawing or equipment specification for compatibility evaluation.

Technical Specifications

Waterproof performance and environmental resistance depend on the selected connector, cable material, assembly method and test conditions. Applicable ratings and test information should be confirmed before ordering.

How to Select the Right Cable Assembly

To recommend a suitable Marine Waterproof Connector Cable Assembly, please confirm:

1. Required number of connector pins

2. Equipment operating voltage

3. Maximum operating current

4. Power, signal or combined transmission

5. Required cable length

6. Wire gauge or conductor cross-section

7. Connector installation direction

8. Equipment interface dimensions

9. Required waterproof or environmental rating

10. Estimated order quantity

Providing a drawing or physical sample can improve model selection and quotation accuracy.

Quality Inspection

Each cable assembly should be produced and inspected according to the confirmed drawing and electrical requirements. Depending on the product configuration, inspection may include:

• Cable length and wire specification inspection

• Connector appearance and dimensional inspection

• Pin arrangement and polarity verification

• Electrical continuity testing

• Connector mating and locking inspection

• Pull-force or connection stability inspection

• Waterproof testing where applicable

• Product labeling and packaging inspection

Test standards and inspection items should be confirmed according to the actual product model and order requirements.

Why Choose Our Marine Cable Assemblies

OEM and Custom Configuration Support

Cable length, connector type, pin arrangement and wire specification can be configured according to equipment interfaces and installation drawings.

Support for Equipment Integration

The cable assemblies are suitable for boat builders, marine equipment manufacturers, electrical system suppliers and installation contractors requiring standardized connection solutions.

Drawing and Sample Evaluation

Customers may submit drawings, connector samples or existing cable assemblies for configuration review and compatibility assessment.

Production Consistency

Confirmed samples and specifications can be converted into production and inspection requirements to help maintain consistency in repeat orders.

Clear Technical Communication

Voltage, current, cable size, pin definition and environmental requirements are reviewed before production to reduce specification misunderstandings.

Frequently Asked Questions

Can the cable length be customized?

Yes. Cable length can be configured according to the equipment position and wiring layout. The conductor size and electrical load should also be confirmed before production.

Can you match an existing connector?

Customers may provide a connector sample, photograph, dimensional drawing or equipment interface information for compatibility evaluation.

Can the cable transmit both power and signals?

This depends on the connector pin arrangement, conductor size, shielding requirements and electrical ratings. Please provide the circuit requirements for review.

What information is required for a quotation?

Please provide the connector type, number of pins, cable length, wire gauge, voltage, current, application and required quantity. Drawings or samples are recommended.

Is the connector IP67 or IP68?

The waterproof rating depends on the selected connector model, cable configuration, assembly method and test conditions. The applicable rating should be confirmed through the relevant specification or test report.

Can you provide samples before bulk production?

Sample availability depends on the connector configuration and customization requirements. Standard or pre-production samples may be arranged for compatibility and installation evaluation.
