Pin header/Female header Product Description :

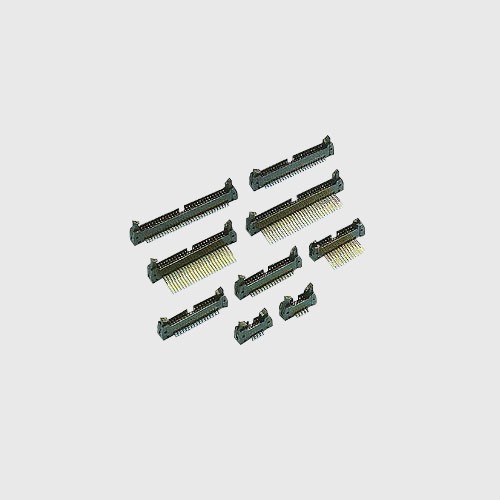

Product name: 2.54mm pop-up connector
Model: EH01A2 series
Type: Right angle
Insulation Materials : PBTGF
Contact pin:brass square needle
Plating: gold plating, tin plating Product specifications:
Current Rato: 1 AMP
Insulation resistance:Minimum 5000MΩ at DC 500V.
Contact resistance:20mΩ max at DC 100mA
At operating temperature: -55℃~+105℃
Sales method: manufacturing, exporting
Sales target market: Taiwan, Mainland China, Hong Kong
competitive characteristics
Unique designs or logos accepted: Special designs or logos accepted
Diverse designs: King Lai Electornics Co.,Ltd. provides diversified designs of 2.54mm EH01A2 series female/pin headers
2.54mm EH01A2 series female/pin headers are accepted for original factory design and manufacturing ODM
2.54mm EH01A2 series female/pin headers are accepted for OEM manufacturing.
