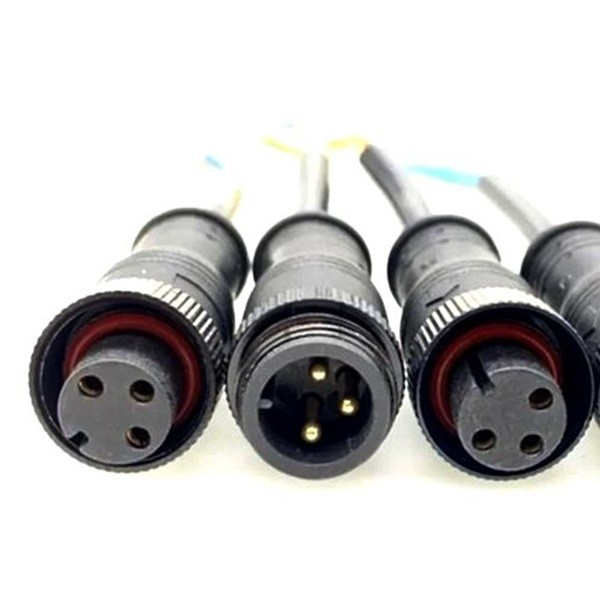

M12 A-Coded Straight 4 Pin Male/Female Molded Connector
M12 A-coded 4Pin Male Connectors are designed for sensors, Fieldbus, and I/O blocks used in automatic fields. It follows the IEC 61076-2101 standard and passes the CYJV UL2238 certificate.
M12 Aviation Panel Back Mount Flange Socket Sensor Connector use professional high quality blacknylon plastic makes it Insulation and flame retardant;
Thread locking mechanism,anti vibration locking design,12mm thread joint;
Waterproof led connector use All-copper nickel-plated metal screw sleeve,pure copper gold-plated contacts,robust and corrosion resistant,durable,while ensuring the stability and reliability of data and signals.
Gender: Male/Female
Code: A, B, C, D, S, T,L,K
Number of Pin: 2 3 4 5 8 12 17 pin
Type: M12 Cable Connector
Standard: IEC 61076-2-101
IP rating: IP68/IP67
Contact plating: Au(Gold)
Operate temperature: Flexible: -25°C ~ +80°C, Static: -40°C ~ +80°C Cable/Connector:According to customer needs
MOQ:100 Pieces
Supply Ability:10000 Pieces per day
Product Description : Aviation plug specifications and models are divided into: M8, M12, M16, M23 aviation plugs.
M8 aviation plug, M12 aviation plug, M16 aviation plug, M23 aviation plug. Among them, M12 aviation plug is very widely used and is the most popular aviation plug on the market. Of course, the specifications can also be distinguished according to its function, such as: round Aviation plugs, rectangular aviation plugs, waterproof aviation plugs, shielded aviation plugs, explosion-proof aviation plugs, etc. Widely used in machine tools, electrical appliances, CNC equipment, medical equipment, servo motors, ships and aviation and other industries
Waterproof connector aviation plugs are commonly used in aviation and marine, military, industrial and outdoor applications.
Its environmental parameter characteristics include:
1. Waterproof performance: Waterproof performance, these plugs usually have a high protection level, ensuring that they can effectively prevent moisture from penetrating in harsh weather conditions or humid environments.
2. Corrosion resistance: Salt spray resistance. The connector operates in an environment containing moisture and salt. The surface treatment layer of its metal structural parts and contacts may cause galvanic corrosion, affecting the physical and electrical properties of the connector. Salt spray test, corrosive gas test (SO2, H2S)
Aviation plugs often need to operate in extreme environments, so they are often made of corrosion-resistant materials such as stainless steel or special alloys to ensure good performance in the presence of high humidity, salt water or chemicals.
3. High temperature resistance: The plug may need to withstand high temperature environments. The current maximum operating temperature of the connector is 200℃ and the minimum temperature is -65℃. ——Temperature resistance experiment, temperature cycle test
4. Moisture resistance: Moisture intrusion will affect the insulation performance of the connector and corrode metal parts. Constant damp heat test, alternating damp heat test
This is critical for applications such as aviation and navigation. Therefore, waterproof connector aviation plugs usually use high temperature resistant materials and insulating materials.
5. Vibration and impact resistance: Vibration and impact resistance are important properties of electrical connectors. They are used in special application environments such as aerospace and high-speed railways.
6. Durability and reliability: Aviation plugs require a high degree of reliability to ensure normal operation under various conditions. Plugs are usually designed with shock, vibration and impact resistance in mind to ensure the connector maintains a stable connection during transportation and use.
7. Quick connection: Some aviation plugs are designed for quick connection, making installation and removal more convenient, which may be very important in some applications.
